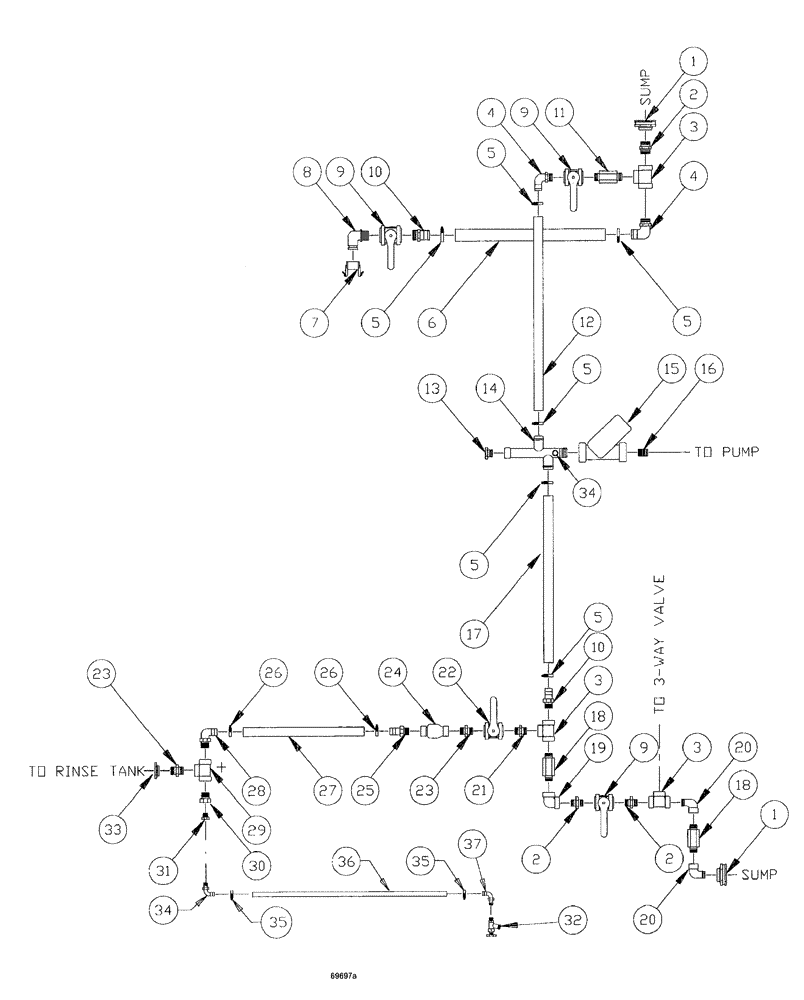

Запчасти Case IH SPX3185 (176) - LIQUID PLUMBING, 750 GALLON ELIPTICAL POLY-SUCTION (78) - SPRAYING

1

BN73784

FITTING

bulkhead, poly, 2"

2шт.

2

BN73783

NIPPLE

2" NPT Short Poly

3шт.

3

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

4

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

5

BN76056

HOSE CLAMP

#36

6шт.

6

BN68378

HOSE,36.00"

EPDM

1шт.

7

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

8

BN25262

ELBOW

90°, 2" NPT

1шт.

9

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

3шт.

10

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

11

BN73790

LUBE NIPPLE

poly, 2" NPT x 6"

1шт.

12

BN53847

HOSE,2.00" ID x 23.50"

Suction

1шт.

13

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

14

BN73553

PLUG

3/4" NPT, Poly

1шт.

15

BN73718A

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

ASSY., 1.5-30 mesh

1шт.

16

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

17

BN53846

HOSE

suction, 2" ID x 18"

1шт.

18

BN73786

NIPPLE

Pipe, Poly, 2" x 4"

2шт.

19

BN73789

FITTING

ELBOW poly, 2", 90 deg.

1шт.

20

BN73785

ELBOW

poly, 90 deg., street, 2"

2шт.

21

BN73780

NIPPLE

Reducer, Poly, 2" x 1.5

1шт.

22

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

23

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

24

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

25

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

26

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

27

BN24529

HOSE, 1-1/4 EPDM x 20

1шт.

28

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

29

BN73662

TEE

1-1/4", Poly

1шт.

30

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

31

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

BUSH reducer, poly, 3/4 x 1/2

1шт.

32

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

BN67395

BRACKET

1шт.

Not Shown

1шт.

Associate part for BN53817

1шт.

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

Associate part for BN53817

1шт.

BN50061

LOCK NUT

3/8-16", UNC, Whiz

2шт.

Associate part for BN53817

1шт.

33

BN73733

FITTING

1 1/2" Bulkhead

1шт.

34

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

35

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

36

BN53765

HOSE,85.00"

1шт.

37

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.
