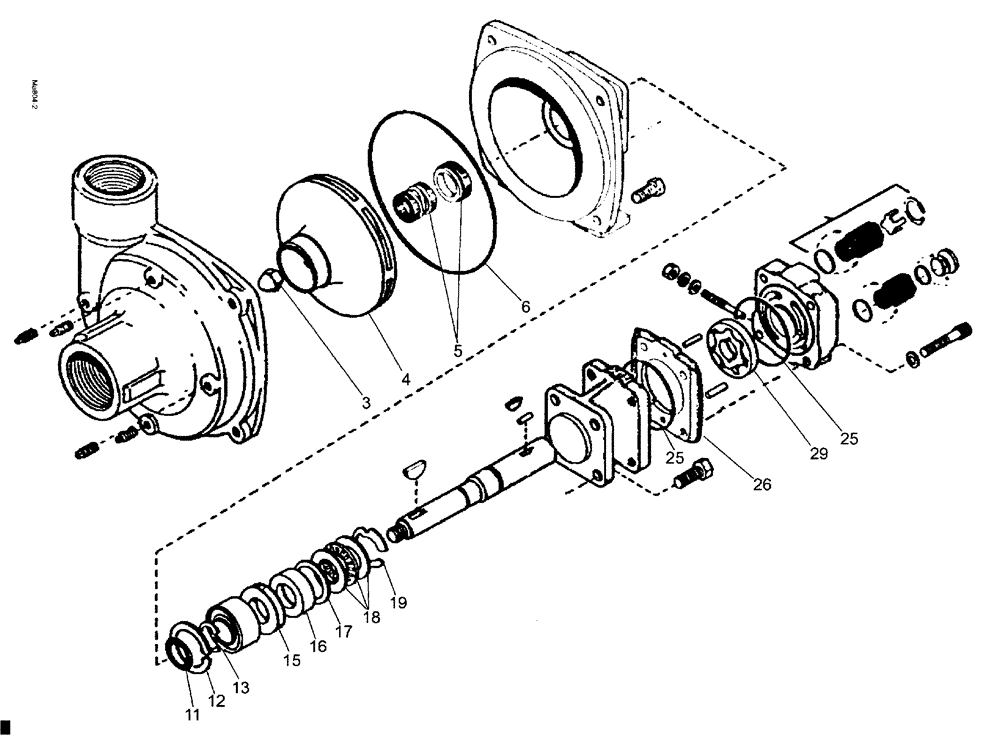

Запчасти Case IH SPX3185 (174) - LIQUID PLUMBING, PRODUCT PUMP (78) - SPRAYING

0

BN53670

HYDROSTATIC PUMP

Complete Product Pump

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

SPX3150, SPX3185 Both(5/99 - 8/02)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

3

BN53693

NUT

Impeller #3

1шт.

4

BN53692

IMPELLER

#4

1шт.

5

NSS

NOT SOLD SEPARAT

MECHANICAL SEAL, Vitron, 9303 MOD.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

BN53768

SEAL KIT

SHAFT

1шт.

Includes Refs. 11,12, 13, 15, 16, 17, 18 and 19

1шт.

11

NSS

NOT SOLD SEPARAT

RING slinger

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

13

NSS

NOT SOLD SEPARAT

RING ring

1шт.

15

NSS

NOT SOLD SEPARAT

SPACER

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER seal

1шт.

18

NSS

NOT SOLD SEPARAT

THRUST BRG ASSY,, (1) thrust brg & (2) thrust brg races

1шт.

19

NSS

NOT SOLD SEPARAT

RING snap

1шт.

BN53769

REPAIR KIT

Gerotor - HM1 Model

1шт.

Includes Refs. 25, 26 and 29, item 26 and 29 are .5" wide

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING

2шт.

26

NSS

NOT SOLD SEPARAT

HOUSING gerotor

1шт.

29

NSS

NOT SOLD SEPARAT

GEROTOR

1шт.

BN53771

HYDRAULIC MOTOR

HM1

1шт.
