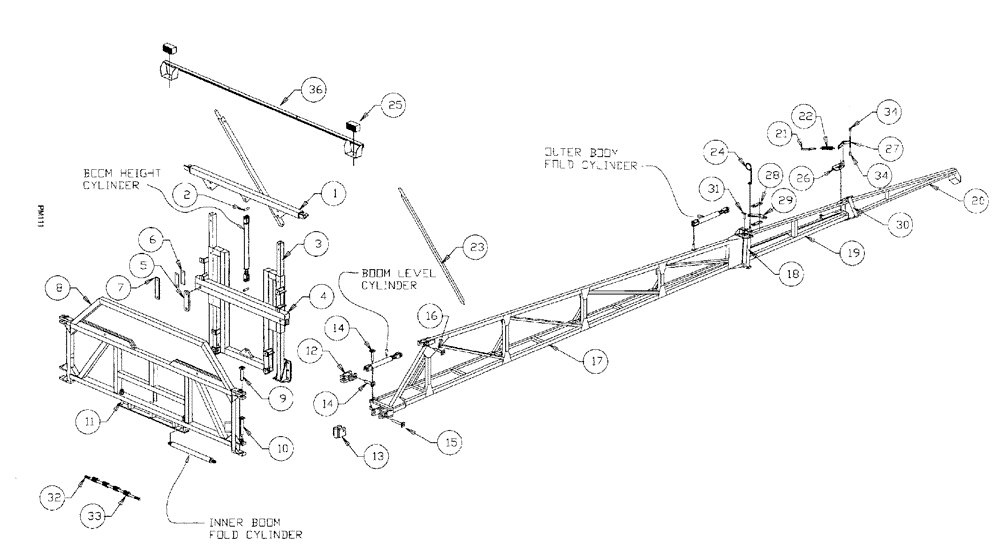

Запчасти Case IH SPX3185 (166) - BOOMS, 75 BOOM ASSEMBLY (78) - SPRAYING

1

BN63501

HANGER

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

8шт.

3

BN67207

SLIDE

Rail RH

1шт.

Shown

1шт.

3

BN67206

SLIDE

Rail LH

1шт.

3a

BN68519

BRACKET, SUPPORTING

Boom Rack (30-70)

1шт.

3a

BN63745

SUPPORT

Rack (30-70)

2шт.

4

BN67216

RACK

Center Boom

1шт.

5

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

6

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

7

BN23268

BRACKET

MOUNT

4шт.

8

BN09256

BOOM

center section

1шт.

9

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

10

BN65220

PIN

1.25". x 6.875

2шт.

11

BN52020

BOLT

1" x 7-1/2"

2шт.

BN50092

NUT

1"-8 Std

2шт.

Associate part for BN52020

1шт.

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

Associate part for BN52020

1шт.

12

BN300282

KIT

Swivel Assembly

2шт.

BN300286

BUSHING

4шт.

Part of assembly BN300282

1шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Part of assembly BN300282

1шт.

13

BN9072

PIVOT ASSY.

2шт.

14

BN65152

PIN

1.00 x 4.75

4шт.

15

BN65153

PIN

1.00 x 6.25

2шт.

16

BN65154

PIN

1. 00 x 3.75

2шт.

17

BN24390A

BOOM

BOOM inner, R.H.

1шт.

Shown

1шт.

17

BN24391A

BOOM

BOOM inner, L.H.

1шт.

Same general part as BN24390 but opposite side

1шт.

18

BN9270

PIN

2шт.

19

BN310958

BOOM

RH, fold

1шт.

Shown

1шт.

19

BN310959

BOOM

Fold, LH

1шт.

Same general part as BN310958 but opposite side

1шт.

20

BN310869

BOOM

Breakaway - RH

1шт.

Shown

1шт.

20

BN310870

BOOM

Breakaway - LH

1шт.

Same general part as BN310869 but opposite side

1шт.

21

BN310970

TENSION SPRING

TAKE UP

2шт.

22

BN24468

SPRING

tension 1.25" x 5.5"

2шт.

23

BN63833

SUPPORT

rack, pat.

2шт.

24

BN24490

BRACKET

hose guide

2шт.

25

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

529068

BULB,#1156, 12V, 21W

2шт.

Associate service part for BN66130

1шт.

BN300878

LENS

amber

2шт.

Associate service part for BN66130

1шт.

BN300881

CAP

Lens, Black

2шт.

Associate service part for BN66130

1шт.

26

BN24500

BRACKET

75' Boom Latch RH

1шт.

26

BN24499

BRACKET

75' Boom Latch LH

1шт.

Same general part as BN24500 but opposite side

1шт.

27

BN24452

LATCH

Mount - Breakaway, 75' boom

2шт.

28

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

4шт.

29

BN21414

BAR

2шт.

30

BN24487

PIN

75' boom

2шт.

31

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

2шт.

32

BN21197

SHAFT

1" x 36"

1шт.

33

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

34

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

4шт.

36

BN69091

WORKING LIGHT

MOUNT flasher lights

1шт.

BN311768

WARNING SIGN

SMV ASSY., with hardware

1шт.

Not Shown

1шт.

311862A1

PLATE

assembly, slow moving vehicle

1шт.

Not Shown

1шт.

Associate part for BN311768

1шт.

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

Not Shown

1шт.

Associate part for BN311768

1шт.

BN50222

BOLT

5/16-18 x .75, TH, SS, PH

2шт.

Not Shown

1шт.

Associate part for BN311768

1шт.

BN24328

BUMPER

Split Hose x 6"

2шт.

Not Shown

1шт.

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

Not Shown

1шт.

BN303883

SUPPORT

BRACE

1шт.

Not Shown

1шт.

BN24791

BRACKET

Cross Brace

1шт.

Not Shown

1шт.
