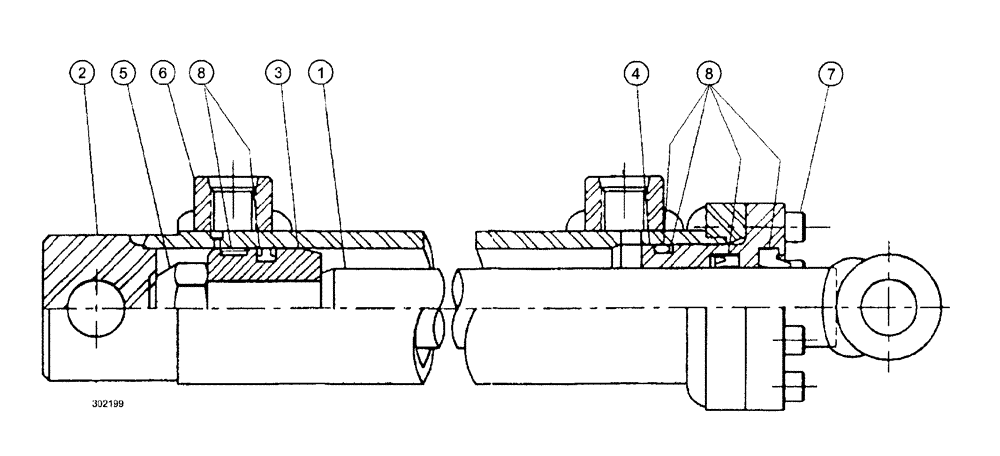

Запчасти Case IH SPX3185 (162) - CYLINDERS, ACTIVE SUSPENSION (35) - HYDRAULIC SYSTEMS

0

BN302199

CYLINDER,Double Acting, 19.05mm Rod, 241.3mm Stroke

Complete, Active Suspension

1шт.

1

BN312661

ROD

piston assembly

1шт.

2

BN312662

BUTT & TUBE ASSY.

1шт.

3

BN312663

PISTON

1шт.

4

BN312664

GLAND

1шт.

5

BN312665

LOCKNUT

1шт.

6

BN312666

PORT PLUG

2шт.

7

BN312667

HEX SOC SCREW

socket head cap

8шт.

8

BN309768

SEAL KIT

1шт.
