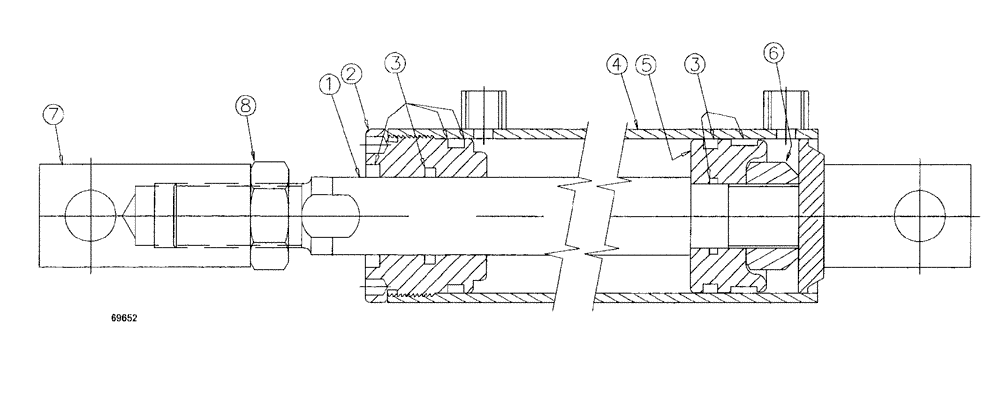

Запчасти Case IH SPX3185 (159) - CYLINDERS, BOOM LEVEL, 90 BOOM (35) - HYDRAULIC SYSTEMS

0

BN69652

CYLINDER

Complete, Boom Level

1шт.

1

BN300160

SHAFT

Cylinder rod

1шт.

2

BN67667

GLAND

end

1шт.

3

BN67668

SEAL ASSY.

kit

1шт.

Item 3 is a complete seal kit. Parts shown are for the screw on end gland. When replacing, take note on how old seals are positioned.

1шт.

4

BN300162

TUBE

cylinder

1шт.

5

BN67670

PISTON

1шт.

6

BN300161

LOCK NUT

1 1/4"-12

1шт.

7

BN300159

CLEVIS

eye, threaded

1шт.

8

BN2294429

JAM NUT

Jam 1 1/4"-12

1шт.
