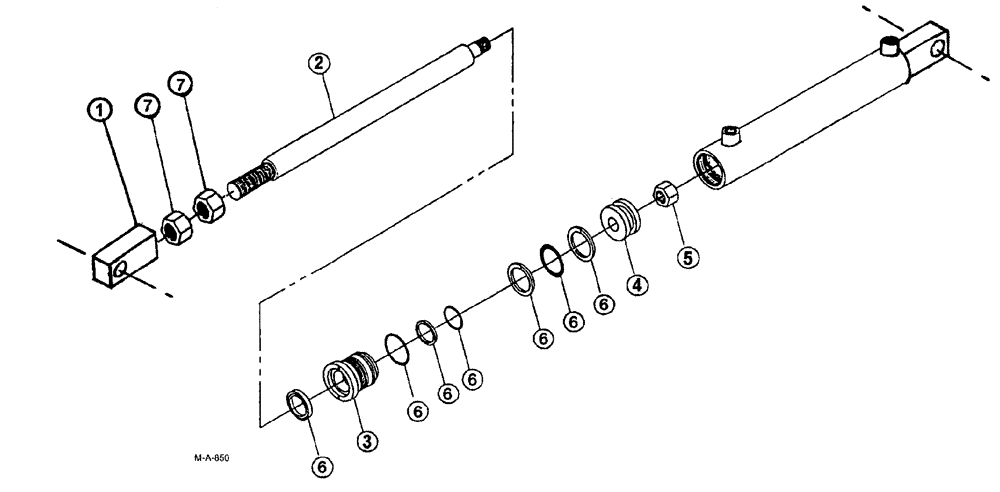

Запчасти Case IH SPX3185 (158) - CYLINDERS, BOOM LEVEL, 60 AND 75 BOOM (35) - HYDRAULIC SYSTEMS

0

BN53806

CYLINDER

Complete, Boom Level, 60'/75' Boom

1шт.

1

BN98519

CLEVIS

for cylinder BN53806

1шт.

2

BN98520

ROD

for cylinder BN53806

1шт.

3

BN98517

GLAND

end

1шт.

4

BN98518

PISTON

for cylinder BN53806

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN98340

SEAL KIT

1шт.

Item 6 is a complete seal kit. Parts shown are for the screw on end gland. When replacing, take note on how old seals are positioned.

1шт.

7

BN98521

NUT jam

2шт.
