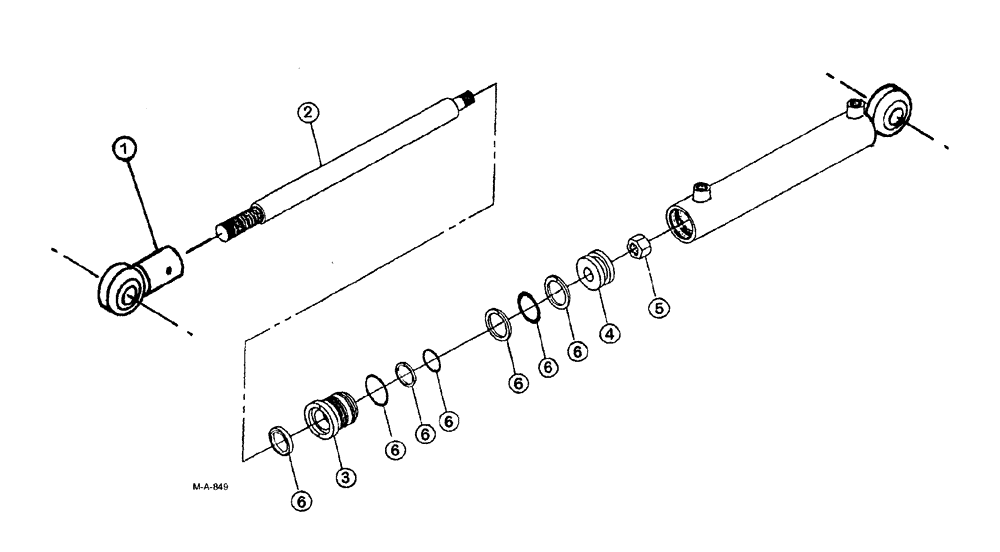

Запчасти Case IH SPX3185 (154) - CYLINDERS, INNER BOOM FOLD, 60 AND 75 BOOM (35) - HYDRAULIC SYSTEMS

0

BN52305

CYLINDER

Complete, Inner Boom Fold, 60'/75' Boom

1шт.

1

BN98291

ASSEMBLY

1шт.

2

BN98515

SHAFT

ROD cylinder

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN68490

SEAL KIT

1шт.

Item 6 is a complete seal kit. Parts shown are for the screw on end gland. When replacing, take note on how old seals are positioned.

1шт.
