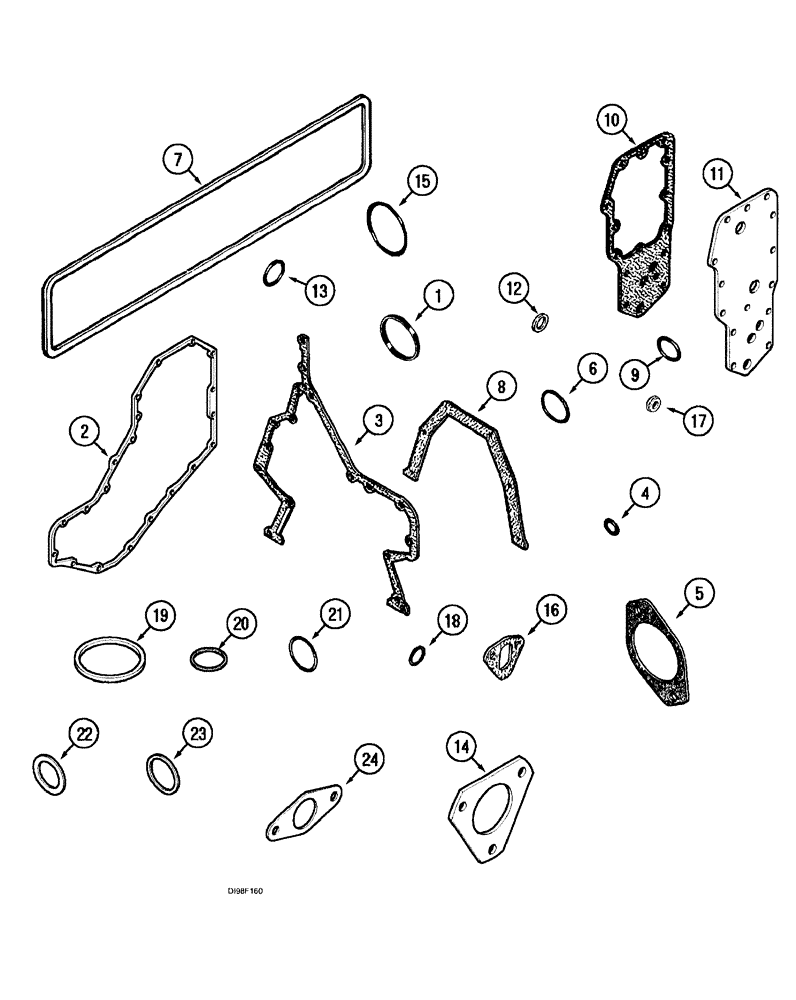

Запчасти Case IH SPX3185 (072) - ENGINE, GASKET KIT, CYLINDER BLOCK (10) - ENGINE

A77861

GASKET KIT

PACKAGE, consists of: 1 - 24, cylinder block

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cylinder block

1шт.

2

J914385

GASKET,1.02mm Thk

SEAL, cylinder block

1шт.

3

J931351

GASKET

SEAL, cylinder block

1шт.

4

J913994

O-RING

cylinder block

1шт.

5

J929751

GASKET

SEAL, cylinder block

1шт.

6

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

7

J928832

GASKET

SEAL, cylinder block

1шт.

8

J928493

GASKET

SEAL, cylinder block

1шт.

9

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, cylinder block

1шт.

10

J942914

GASKET

SEAL, cylinder block

1шт.

11

J929792

GASKET,1.2mm Thk

SEAL, cylinder block

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

cylinder block

1шт.

13

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm ID, cylinder block

1шт.

14

J931607

GASKET

mountimg, cylinder block

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING 158 mm ID, cylinder block

1шт.

16

J931348

GASKET

SEAL, cylinder block

1шт.

17

J928759

SEALING WASHER

cylinder block

8шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

19

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING SEAL, 70 mm, cylinder block

1шт.

20

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING SEAL, 14 mm, cylinder block

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, cylinder block

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER, cylinder block

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL, cylinder block

1шт.

24

J905595

GASKET

SEAL, cylinder block

1шт.
