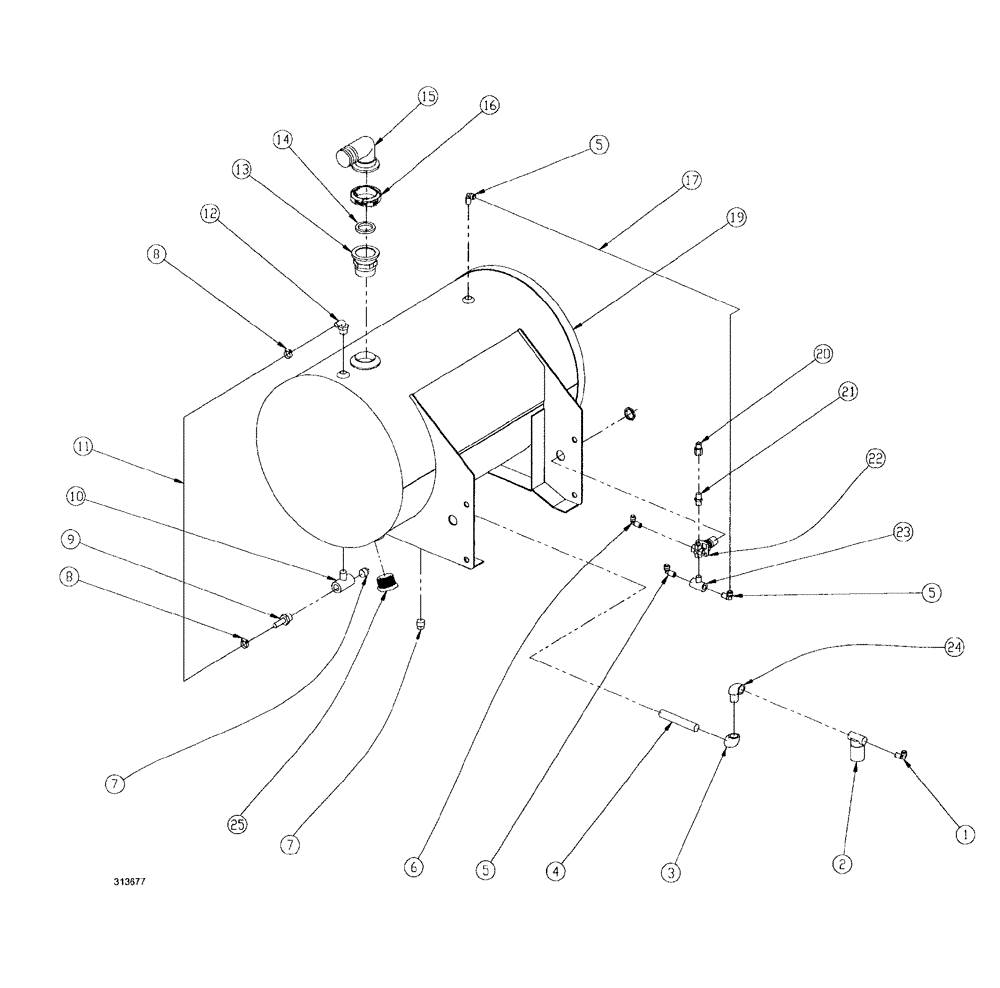

Запчасти Case IH SPX3185 (256) - OPTIONS, FOAM MARKER TANK PARTS GROUP, TURBO (88) - ACCESSORIES

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

2

BN313233

STRAINER ASSY.

1шт.

3

BN73121

ELBOW

1/2" x 90° SS

1шт.

4

BN73118

NIPPLE, LUBE

NIPPLE 1/2" x 5" SS

1шт.

5

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

6

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

7

BN313209

PLUG

1/2 NPT, SQ HD, SS

2шт.

8

BN75906

CLAMP

hose, adj., 3/8 to 1/2, S

2шт.

9

BN73510

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

barb-1/2" x 1/2" poly

1шт.

10

BN313197

TEE

8-8-8, NPT, SS

1шт.

11

BN22497

HOSE,0.50" ID x 25.00"

clear

1шт.

12

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

13

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

14

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

15

405781A1

FITTING,2" Flange x 2" 90 Degree Hose Barb Elbow

2" Flange X 2" Hose Barb, Poly

1шт.

16

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

17

BN313207

TUBE

black, 3/8 x 25

1шт.

19

BN313655

TANK, 40 gal. foamer, W/M

1шт.

20

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

21

BN307985

VALVE

check, 1-2.5 CRK, 1/4 P

1шт.

22

87388151

REGULATOR

Air Pressure

1шт.

23

BN21741

TEE

Steel, 1/4" NPT, F-F-M

1шт.

24

BN306481

ELBOW

1/2" SS 90° STR.

1шт.

25

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.
