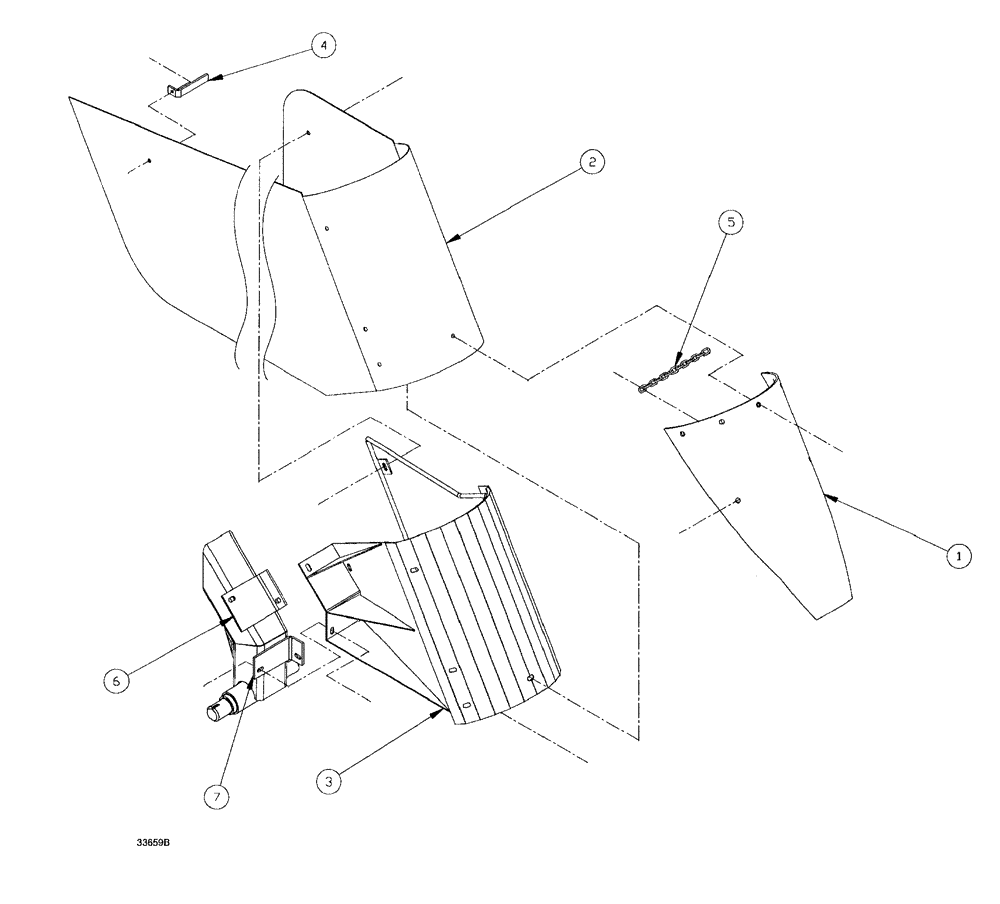

Запчасти Case IH SPX3185 (251) - OPTIONS, CROP GUARD (88) - ACCESSORIES

1

BN65826

GUARD

Crop LH

2шт.

Shown

1шт.

BN65827

GUARD

Crop RH

2шт.

Same general part as BN65826 but opposite side

1шт.

2

BN65831

SHIELD

plastic

4шт.

3

BN65820

GUARD

Crop - LH Upper

2шт.

Shown

1шт.

BN65821

GUARD

crop, R.H., upper

2шт.

Same general part as BN65820 but opposite side

1шт.

4

BN65816

MOUNTING PLATE

guard

4шт.

5

BN65847

CHAIN

tension

4шт.

6

BN63728

MOUNTING PLATE

1/4 HRS 5.0 x 8.25

2шт.

7

BN63730

MOUNTING PLATE

1/4 HRS 3.25 x 8.25

2шт.

BN68571

REPAIR KIT

BOLT

1шт.

Not Shown

1шт.
