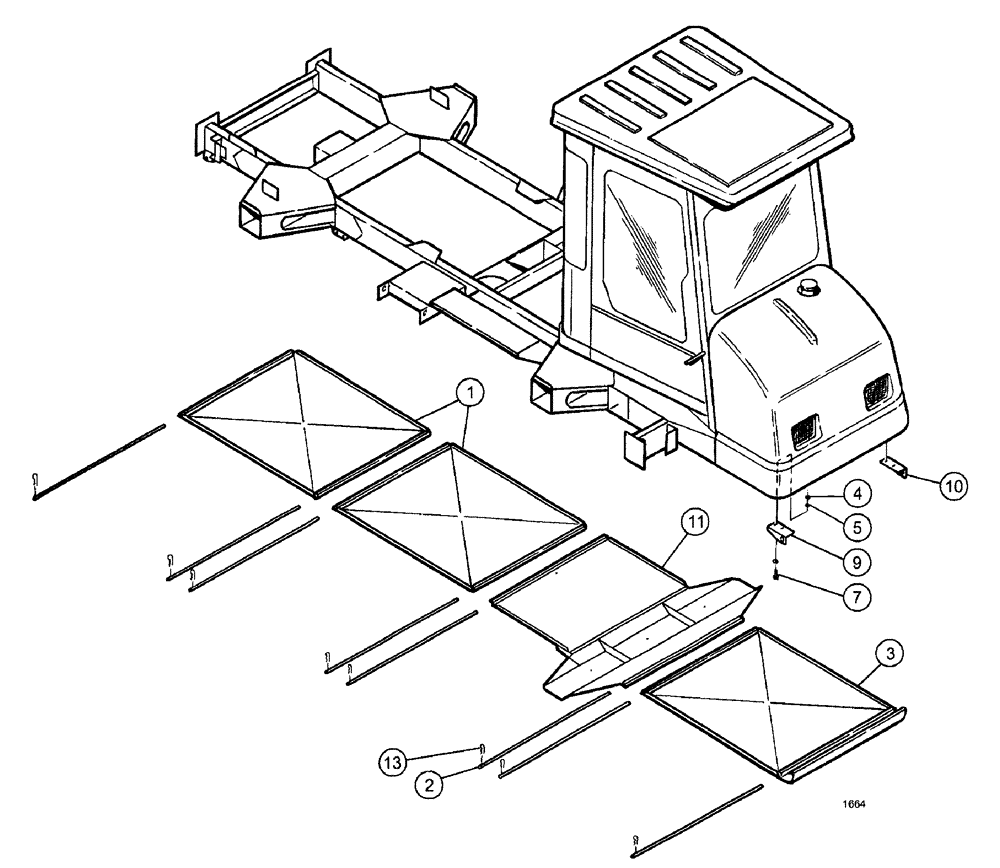

Запчасти Case IH SPX3185 (250) - OPTIONS, BELLYPAN ASSEMBLY (88) - ACCESSORIES

1

BN28493

PAN

belly

2шт.

2

BN28497

PIN,19.05mm OD x 1219.2mm L

3/4" CF Round x 48"

8шт.

3

BN28762

PAN

belly, front

1шт.

4

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

5

BN50145

WASHER

3/8, G5

8шт.

7

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

9

BN69834

MOUNTING PLATE

RH Front Bellypan

1шт.

10

BN69835

MOUNTING PLATE

LH Front Bellypan

1шт.

11

BN313089

PAN

bellypan

1шт.

13

BN71006

COTTER PIN

1/8", #11

16шт.
