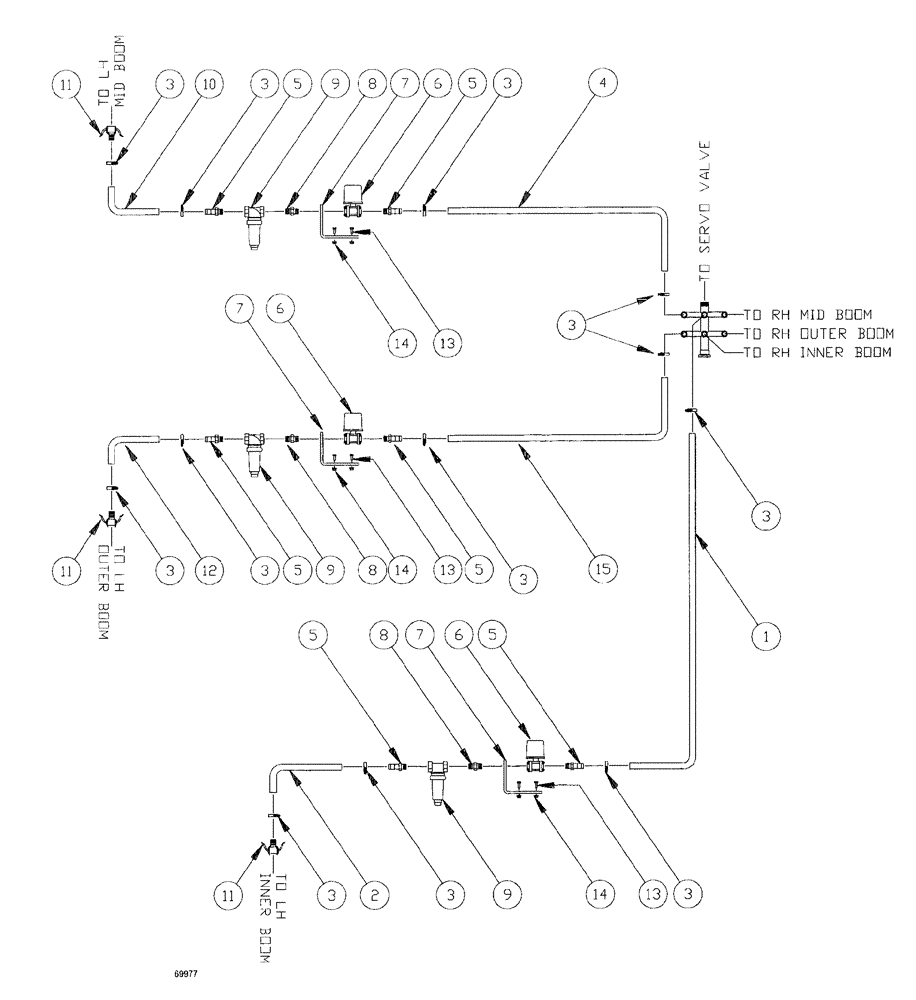

Запчасти Case IH SPX3185 (234) - LIQUID PLUMBING, 90 6-BOOM SHUTOFF RAVEN/MID-TECH LH BOOM (78) - SPRAYING

1

BN66857

HOSE

1" EPDM x 15.00"

1шт.

2

BN66858

HOSE

1" EPDM x 31.00"

1шт.

3

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

4

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

6

87389559

VALVE

Electric, 1" Ball

3шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

3шт.

9

BN73681

FILTER STRAINER

1", 50 mesh

3шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10

BN67565

HOSE

1" EPDM x 350.00"

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN53668

COUPLING

1" Female, HS SHK

3шт.

12

BN66855

HOSE

1" EPDM x 26.00"

1шт.

13

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

6шт.

14

BN50051

NUT,1/4"-20, USR

6шт.

15

BN66854

HOSE

1" EPDM x 135.00"

1шт.
