Запчасти Case IH SPX3185 (233) - LIQUID PLUMBING, 75 5-BOOM SHUTOFF 20"/30" NOZZLE SPACING, CENTER BOOM (78) - SPRAYING

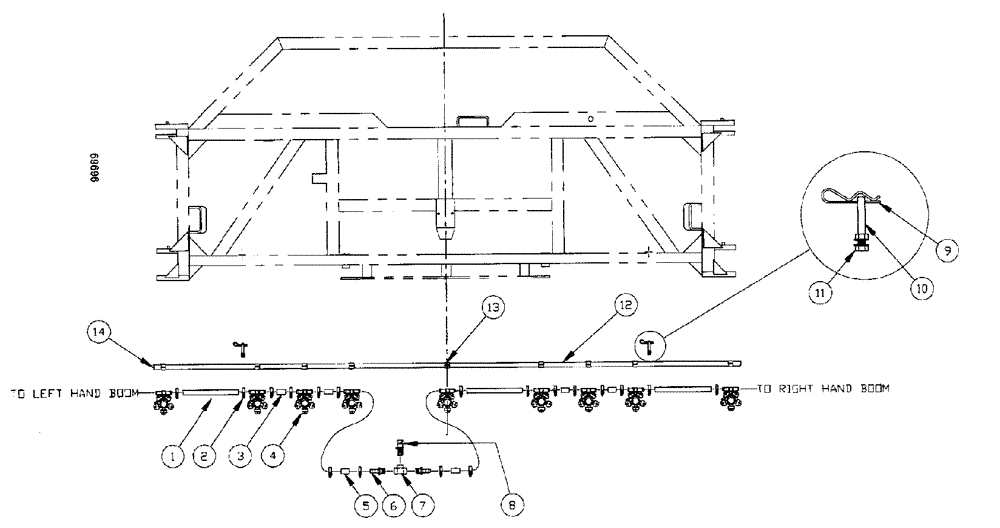

Схема запчастей Case IH SPX3185 - (233) - LIQUID PLUMBING, 75 5-BOOM SHUTOFF 20"/30" NOZZLE SPACING, CENTER BOOM (78) - SPRAYING
1
14
7
3
4
10
5
11
2
13
9
6
8
12

Артикул

Название

Примечание

Количество

1

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

3шт.

2

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

18шт.

3

BN53862

Hose - EPDM 3/4" ID x 8.5"

4шт.

4

BN68699

NOZZLE

5 way double, 3/4" SHA

9шт.

4

BN74621

NOZZLE

3-Way Double 3/4" SHA, or use 68699 or 74617

9шт.

4

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

9шт.

5

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

6

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

2шт.

7

BN73629

TEE

1" Poly Pipe

1шт.

8

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

9

BN71006

COTTER PIN

1/8", #11

2шт.

10

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

11

BN50061

LOCK NUT

3/8-16", UNC, Whiz

4шт.

12

BN24486

TUBE

1" Sq x 124"

1шт.

13

BN74448

CLAMP

1" square tubing

9шт.

14

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Выбрано товаров: 16
