Запчасти Case IH SPX3185 (220) - LIQUID PLUMBING, 75 3-BOOM SHUTOFF 20"/30" NOZZLE SPACING, RH AND LH BOOM (78) - SPRAYING

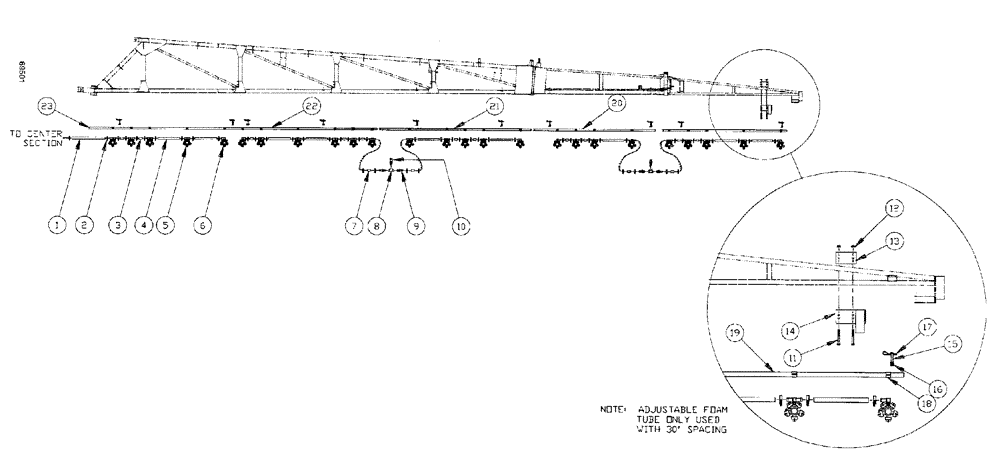

Схема запчастей Case IH SPX3185 - (220) - LIQUID PLUMBING, 75 3-BOOM SHUTOFF 20"/30" NOZZLE SPACING, RH AND LH BOOM (78) - SPRAYING
3
9
4
15
23
17
14
20
2
21
3
6
18
8
1
19
10
22
4
13
12
7
11
5
16

Артикул

Название

Примечание

Количество

1

BN53749

HOSE,0.75" ID x 36.00"

1шт.

2

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

50шт.

3

BN53862

Hose - EPDM 3/4" ID x 8.5"

11шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

9шт.

5

BN68699

NOZZLE

5 way double, 3/4" SHA

20шт.

5

BN74621

NOZZLE

3-Way Double 3/4" SHA, or use 68699 or 74617

20шт.

5

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

20шт.

6

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

6

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

6

BN74618

NOZZLE, 1 way, single, 3/4" SHA, or use 69475 or 74622

5шт.

7

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

8

BN73629

TEE

1" Poly Pipe

2шт.

9

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

4шт.

10

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

11

BN50895

BOLT

hex head, 5/16-18 x 3, 5, PL

2шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

13

BN24668

MOUNTING PLATE

7 GA HRS 2.5 x 4.25

1шт.

14

BN24665

MOUNTING PLATE

foam tube, R.H.

1шт.

14

BN24666

MOUNTING PLATE

foam tube, L.H.

1шт.

Same general part as BN24665 but opposite side

1шт.

15

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

16

BN50061

LOCK NUT

3/8-16", UNC, Whiz

20шт.

17

BN71006

COTTER PIN

1/8", #11

10шт.

18

BN74448

CLAMP

1" square tubing

25шт.

19

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

20

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

21

BN24477

TUBE

1" Sq x 81.5"

1шт.

22

BN24478

TUBE

1" Sq x 155"

1шт.

23

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

Выбрано товаров: 29
