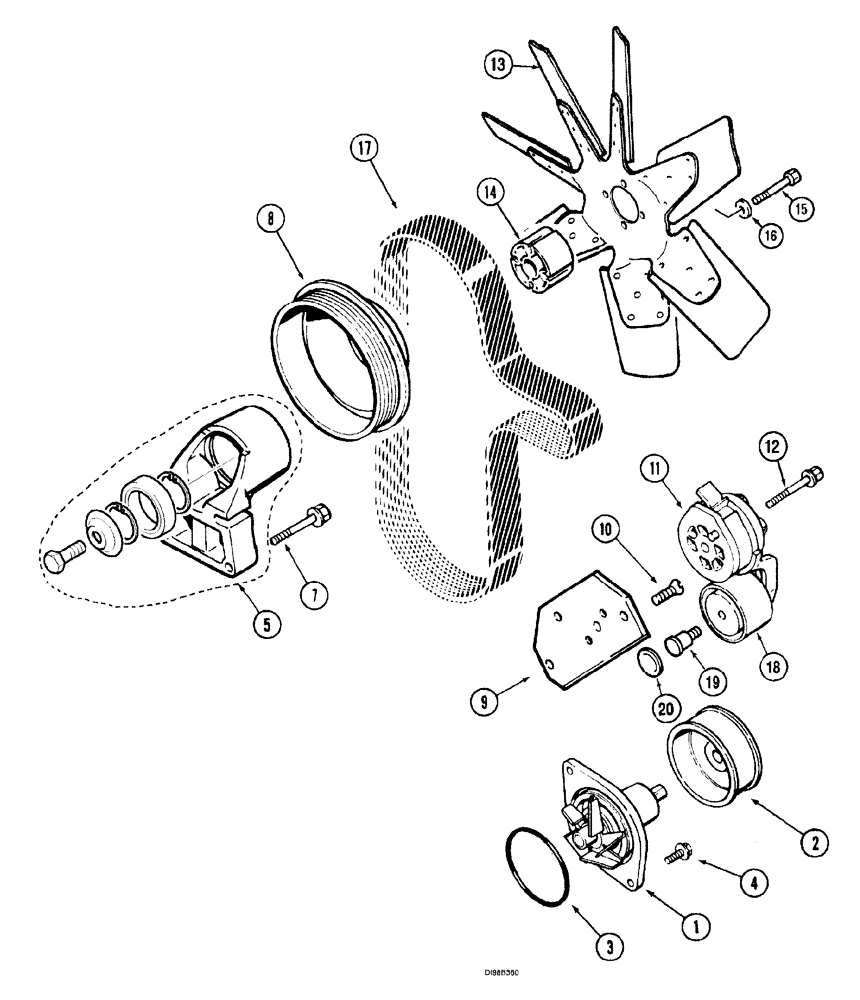

Запчасти Case IH SPX3185 (032) - ENGINE, WATER PUMP AND FAN (10) - ENGINE

J802358

PUMP, WATER

KIT

1шт.

Consists of Refs. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

SPX3150

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSY., order A77703

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

Model SPX3150

1шт.

2

J914459

PULLEY

order A77703

1шт.

Model SPX3185

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

fan

1шт.

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

Service part for J911922

1шт.

J923044

RETAINER

1шт.

Service part for J911922

1шт.

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

Service part for J911922

1шт.

100-21250

SNAP RING,2.50", Int, #250

2шт.

Service part for J911922

1шт.

J911923

SUPPORT

fan drive

1шт.

Service part for J911922

1шт.

7

86624973

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

4шт.

8

J914461

PULLEY

fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

9

J925275

SUPPORT

BRACKET

1шт.

Model SPX3150

1шт.

9

J925198

SUPPORT

BRACKET

1шт.

Model SPX3185

1шт.

10

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

11

J918944

BELT TENSIONER

1шт.

12

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

13

FAN

1шт.

See Fig. 026

1шт.

14

SPACER

1шт.

See Fig. 026

1шт.

15

BOLT

4шт.

See Fig. 026

1шт.

16

WASHER

4шт.

See Fig. 026

1шт.

17

BELT

1шт.

See Fig. 087

1шт.

A77817

KIT

Pulley Assembly, Belt Tension

1шт.

Consists of Refs. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL

1шт.
