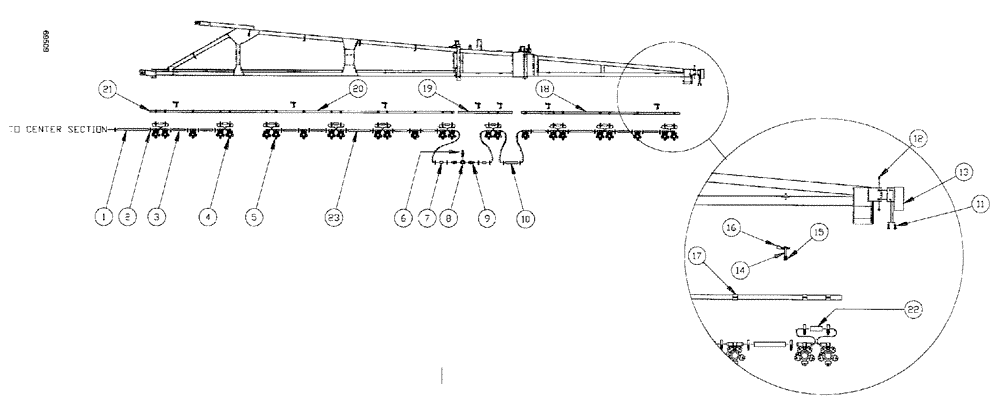

Запчасти Case IH SPX3185 (210) - LIQUID PLUMBING, 60 3-BOOM SHUTOFF 20"/30" NOZZLE SPACING, RH AND LH BOOM (78) - SPRAYING

1

BN53748

HOSE,0.75" ID x 30.00"

1шт.

2

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

50шт.

3

BN53859

HOSE, EPDM, 3/4" ID x 13.5"

9шт.

4

BN69475

NOZZLE

5 way single, 3/4" SHA

3шт.

4

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

3шт.

4

BN74618

NOZZLE, 1 way, single, 3/4" SHA, or use 69475 or 74622

3шт.

5

BN68699

NOZZLE

5 way double, 3/4" SHA

22шт.

5

BN74621

NOZZLE

3-Way Double 3/4" SHA, or use 68699 or 74617

22шт.

5

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

22шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

2шт.

8

BN73629

TEE

1" Poly Pipe

1шт.

9

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

2шт.

10

BN53749

HOSE,0.75" ID x 36.00"

1шт.

11

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN9265

TUBE, foam marker, R.H.

1шт.

BN9266

TUBE, foam marker, L.H.

1шт.

Same general part as BN9265 but opposite side

1шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

15

BN50061

LOCK NUT

3/8-16", UNC, Whiz

14шт.

16

BN71006

COTTER PIN

1/8", #11

7шт.

17

BN74448

CLAMP

1" square tubing

25шт.

18

BN89811

TUBE

1" x 1" x12 ga. x 85.25

1шт.

19

BN89810

TUBE

1" x 1" x 12 ga. x 29.50

1шт.

20

BN89813

TUBE

1 x 1 x 12 ga. sq. x 164.5

1шт.

21

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

6шт.

22

BN53858

HOSE, EPDM, 3/4" ID x 4.25"

10шт.

23

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

2шт.
