Запчасти Case IH SPX3185 (200) - LIQUID PLUMBING, 750 GALLON ELIPTICAL RINSE TANK AND DECK (78) - SPRAYING

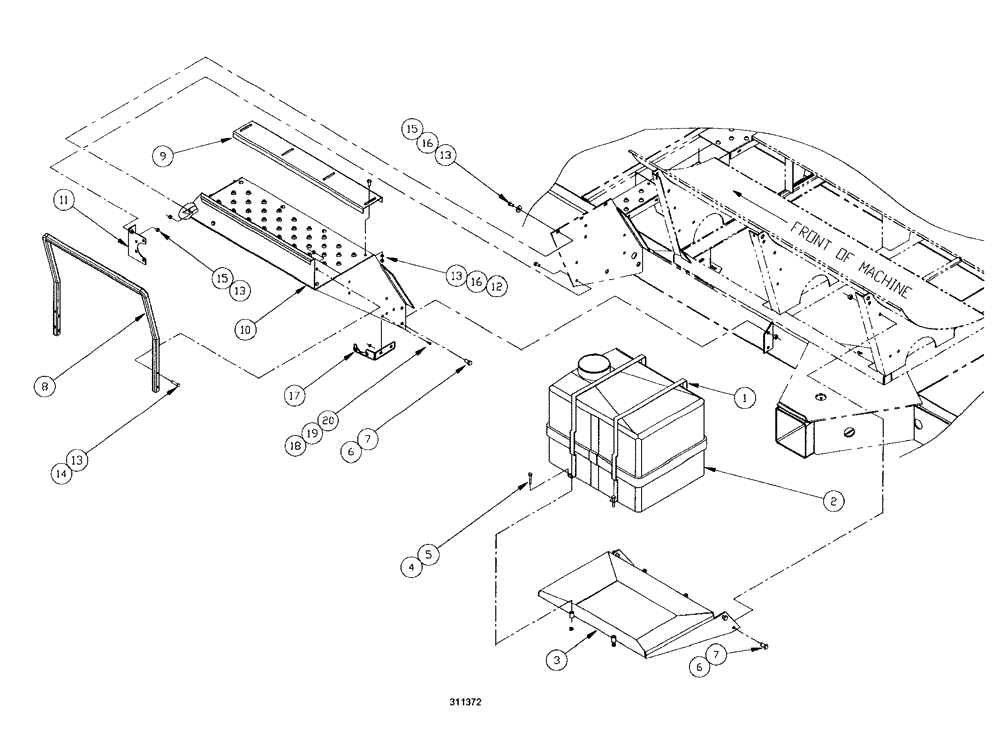

Схема запчастей Case IH SPX3185 - (200) - LIQUID PLUMBING, 750 GALLON ELIPTICAL RINSE TANK AND DECK (78) - SPRAYING
10
20
6
7
9
13
18
13
8
13
7
15
13
11
12
3
17
16
15
1
2
5
4
14
6
16
19

Артикул

Название

Примечание

Количество

1

BN63984

STRAP

14 GA Hrs 1 x 49.5

2шт.

2

BN310969

TANK

assembly, 35 gallon, gray

1шт.

BN24183

COVER

Rinse Tank (Ace)

1шт.

Part of assembly BN310969

1шт.

BN311058

TANK

35 gallon, elliptical

1шт.

Part of assembly BN310969

1шт.

3

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

4

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

7

86992215

LOCK NUT,1/2"-13, GC

6шт.

8

BN24525

TUBE

Railing 12 ga 1 x 1 x 71.12

1шт.

9

BN24513

BRACKET

12 GA HRS 7.0 x 34.50

1шт.

10

BN318539

PLATFORM ASSY.

Deck, LH, 800 Elliptical

1шт.

11

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

12

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

13

BN50061

LOCK NUT

3/8"-16, G5, UNC, Whiz

13шт.

14

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

5шт.

16

BN50145

WASHER

3/8, G5

7шт.

17

BN69411

VALVE

Support 1.5" x 6" Angle

1шт.

18

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

19

BN50141

WASHER

flat, 5/16, G5

2шт.

20

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

Выбрано товаров: 24
