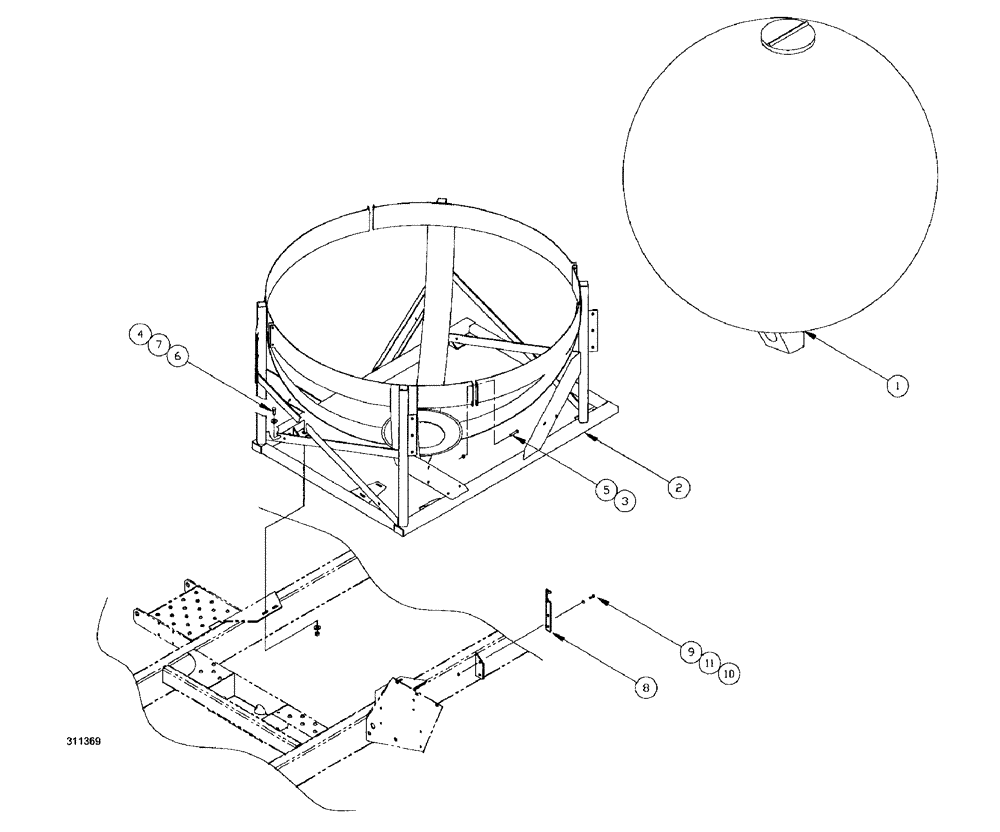

Запчасти Case IH SPX3185 (198) - LIQUID PLUMBING, 750 GALLON SPHERICAL PRODUCT TANK (78) - SPRAYING

1

BN310976

TANK

750 gal. spherical, gray

1шт.

BN98718

COVER

RING,THD

1шт.

Associate part for BN310976

1шт.

2

BN25393

BASKET ASSY

750 Gallon Spherical

1шт.

3

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

8шт.

4

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PL

8шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

8

BN303545

SUPPORT

valve, 3 way

1шт.

9

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

10

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

11

BN50141

WASHER

flat, 5/16, G5

2шт.
