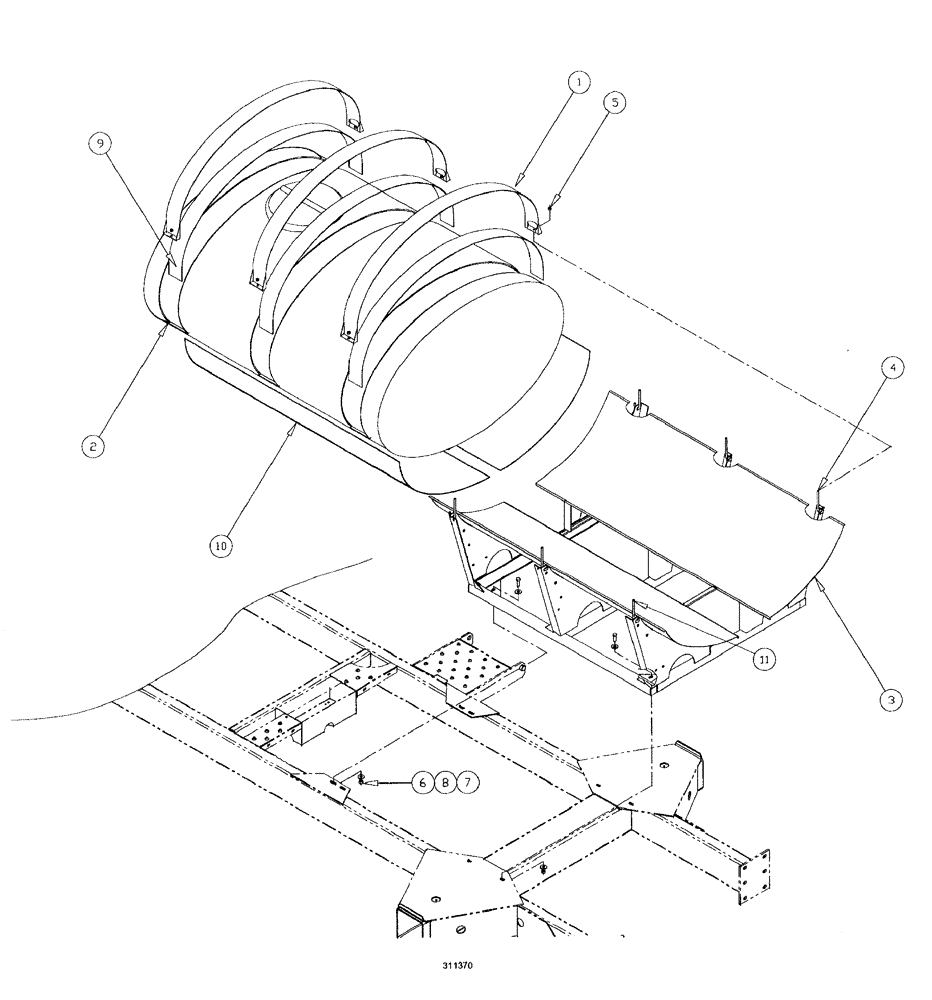

Запчасти Case IH SPX3185 (196) - LIQUID PLUMBING, 750 GALLON ELIPTICAL PRODUCT TANK (78) - SPRAYING

1

BN29430

STRAP

Tankband - 750 Gallon

3шт.

2

BN310968

TANK, elliptical, 750 gal., gray, or use BN304518

1шт.

BN98718

COVER

RING, THD

1шт.

Associate part for BN310968

1шт.

2

BN304518

TANK

TANK, SS, eliptical,, 750 gal., or use BN310968

1шт.

3

BN29358

SKID PLATE

750 gal. tank, shown, or use BN304314

1шт.

3

BN304314

SKID, 750 gal. tank, SS, or use BN29358

1шт.

4

BN50707

BOLT

J-3/8-16 x 4.5

3шт.

4

BN305143

BOLT

J 3/8-16 UNC x 5", PL, or use BN50707

3шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PL

6шт.

6

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

8

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

9

BN24121

LINER

1/8" EPDM 4" x 96"

3шт.

10

BN24122

LINER

1/8" EPDM 36" x 66"

2шт.
