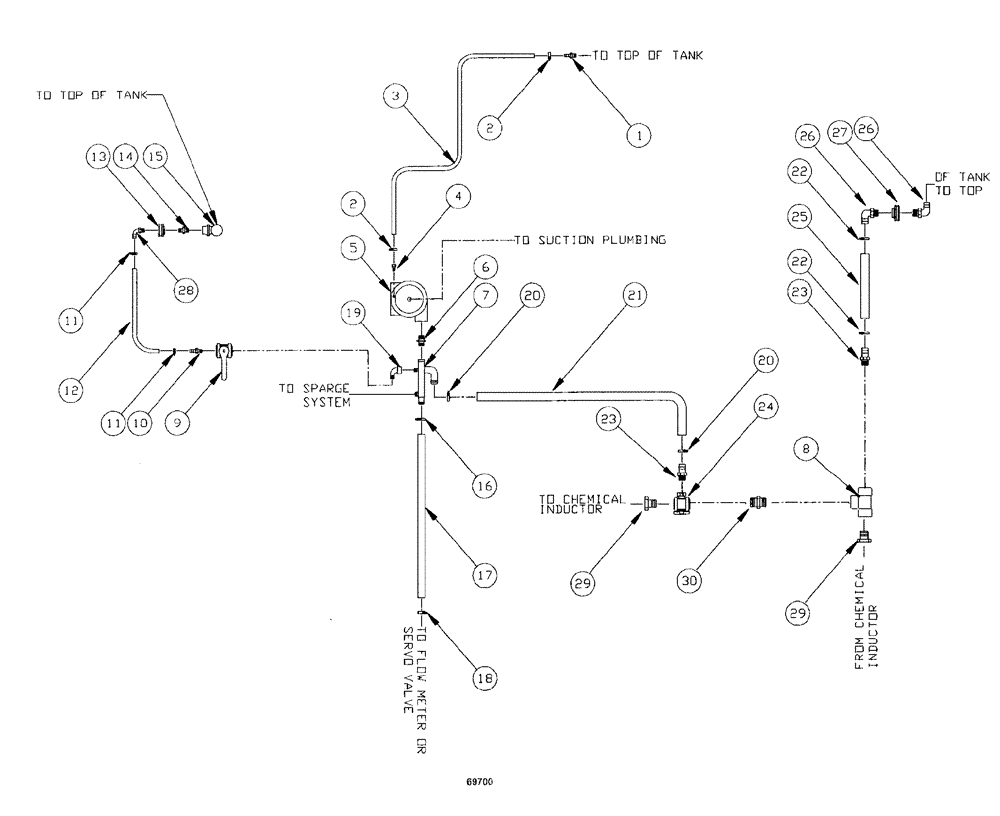

Запчасти Case IH SPX3185 (190) - LIQUID PLUMBING, 750 GALLON SPHERICAL-PRESSURE (78) - SPRAYING

1

BN53433

FITTING

BARB, 1/4 NPT x 1/4, HS

1шт.

2

BN76094

HOSE CLAMP

SS #M4

2шт.

3

BN65280

HOSE,6.35mm ID x 3479.8mm L

.25 x 137.00 EPDM

1шт.

4

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

5

NSS

NOT SOLD SEPARAT

PUMP hypro, with HM1 motor

1шт.

See Fig. 174

1шт.

6

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

7

BN29958

MANIFOLD

Liq. Product 770

1шт.

8

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

9

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

10

BN73561

FITTING

BARB, 3/4 NPT x 3/4, HS

1шт.

11

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

12

BN53931

HOSE,130.00"

1шт.

13

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

1шт.

14

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

15

29568

NOZZLE

Rinse 360 Degree

1шт.

16

BN53810

HOSE CLAMP

1.75" ID, T bolt

1шт.

17

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

18

BN76084

HOSE CLAMP

Adj. #24, SS

1шт.

19

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

20

BN53811

CLAMP

2" ID, T-bolt

2шт.

21

BN65282

HOSE

1.50 x 30.00 EPDM

1шт.

22

BN76093

HOSE CLAMP

#28, SS

4шт.

23

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

2шт.

24

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

25

301617

SLEEVE

Hose 1.5" EPDM x 100"

1шт.

26

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

27

BN73733

FITTING

1 1/2" Bulkhead

1шт.

28

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

29

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

30

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.
