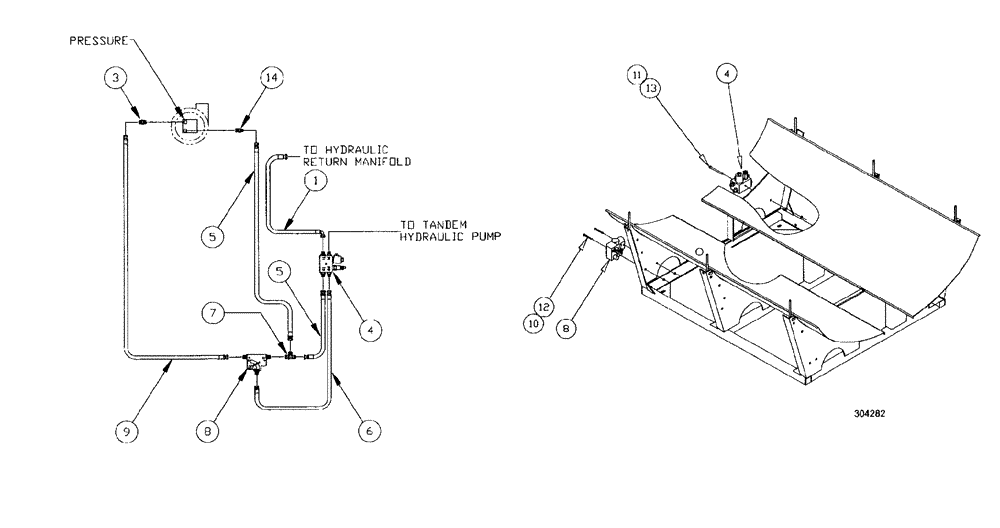

Запчасти Case IH SPX3185 (187) - LIQUID PLUMBING, 750 GALLON STAINLESS STEEL-HYDRAULIC (78) - SPRAYING

1

BN311289

HOSE,0.75" ID x 31.00"

100R2

1шт.

2

BN311233

HOSE,0.50" ID x 84.00"

100R2

1шт.

3

BN441006

ADAPTER

1/2 NPT-8 JIC

1шт.

4

BN311288

HYDRAULIC VALVE

MANIFOLD ASSY., with adapters

1шт.

BN95962

KIT seal

1шт.

Service part for BN311288

1шт.

BN95744

CARTRIDGE

1шт.

Service part for BN311288

1шт.

BN95745

COIL

solenoid valve

1шт.

Service part for BN311288

1шт.

BN95239

VALVE relief

1шт.

Service part for BN311288

1шт.

5

BN53563

HOSE,0.75" ID x 54.00"

100R2

2шт.

6

BN54163

HOSE,0.50" ID x 28.00", SAE 100R2

1шт.

7

BN53573

TEE

JIC, 1-1/16-16, ML-FML

1шт.

8

BN311338

REGULATOR

FLOW ASSY., with adapter

1шт.

9

BN54238

HOSE

1/2" x 42", 100R2

1шт.

10

BN50534

BOLT

Hex, 1/4"-20 x 2 1/2", G5

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

hex head, 5/16-18 x 4, SS

1шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN50056

LOCK NUT

5/16"-18, Whiz

1шт.

14

BN52288

ADAPTER

FT, 1/2"-14 x 1-1/16-12

1шт.
