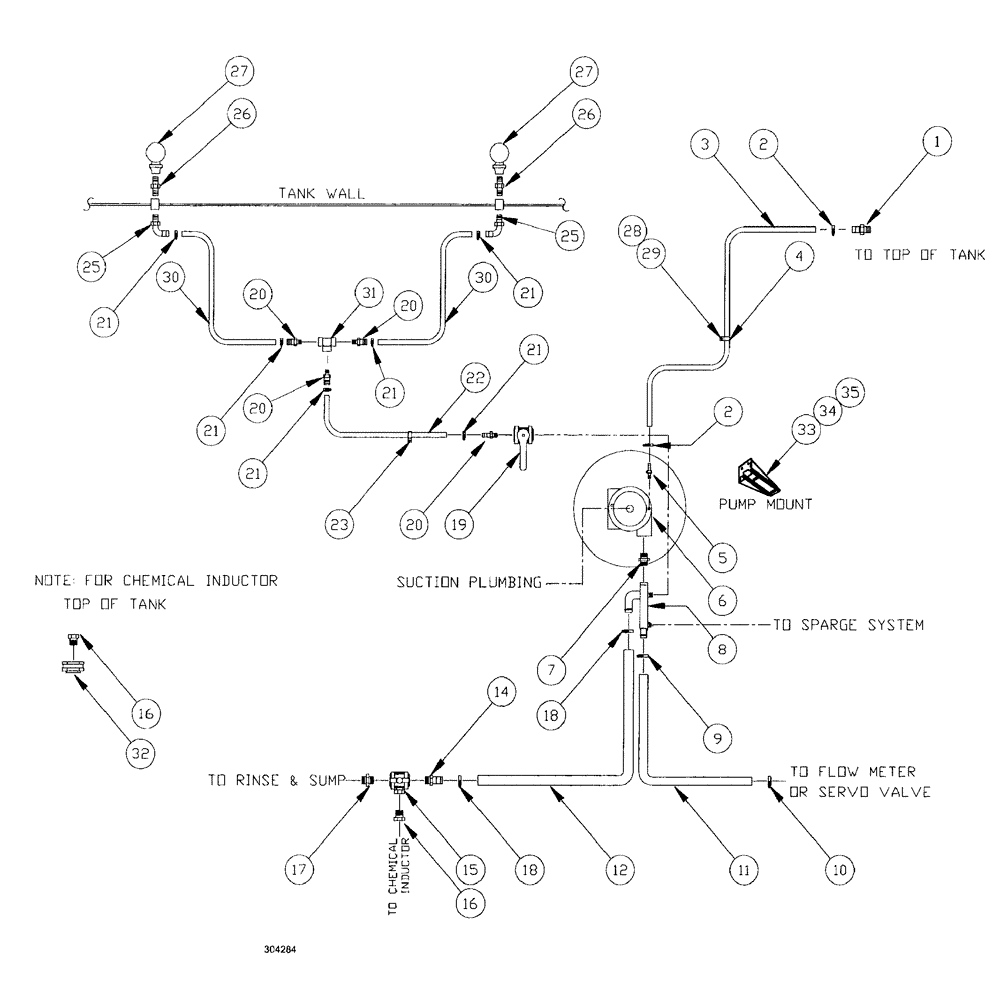

Запчасти Case IH SPX3185 (184) - LIQUID PLUMBING, 750 GALLON STAINLESS STEEL-PRESSURE (78) - SPRAYING

1

BN53433

FITTING

BARB, 1/4 NPTx 1/4, HS

1шт.

2

BN76094

HOSE CLAMP

SS #M4

2шт.

3

BN53786

HOSE

1/4" EPDM x 92.0"

1шт.

4

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

6

NSS

NOT SOLD SEPARAT

PUMP hypro, with HM1 motor

1шт.

See Fig. 174

1шт.

7

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

8

BN29958

MANIFOLD

Liq. Product 770

1шт.

9

BN53810

HOSE CLAMP

1.75" ID, T BOLT

1шт.

10

BN76084

HOSE CLAMP

Adj. #24, SS

1шт.

11

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

12

BN53754

HOSE,12.50"

1шт.

14

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

15

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

16

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

17

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

18

BN53811

CLAMP

2" ID, T-bolt

2шт.

19

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

20

BN73561

FITTING

BARB, 3/4 NPT x 3/4, HS

4шт.

21

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

6шт.

22

BN53766

HOSE, 3/4" EPDM x 92.0"

1шт.

23

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

25

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

2шт.

26

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

27

29568

NOZZLE

Rinse 360 Degree

2шт.

28

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

29

BN50054

NUT,1/4"-20, SS

1шт.

30

BN53857

HOSE,0.75" ID x 26.00"

Flexible

2шт.

31

BN73560

TEE

poly pipe, 3/4"

1шт.

32

BN73733

FITTING

1 1/2" Bulkhead

1шт.

33

BN304480

MOUNTING PLATE

pump

1шт.

34

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

35

BN50062

LOCK NUT,3/8"-16, Stainless Steel

2шт.
