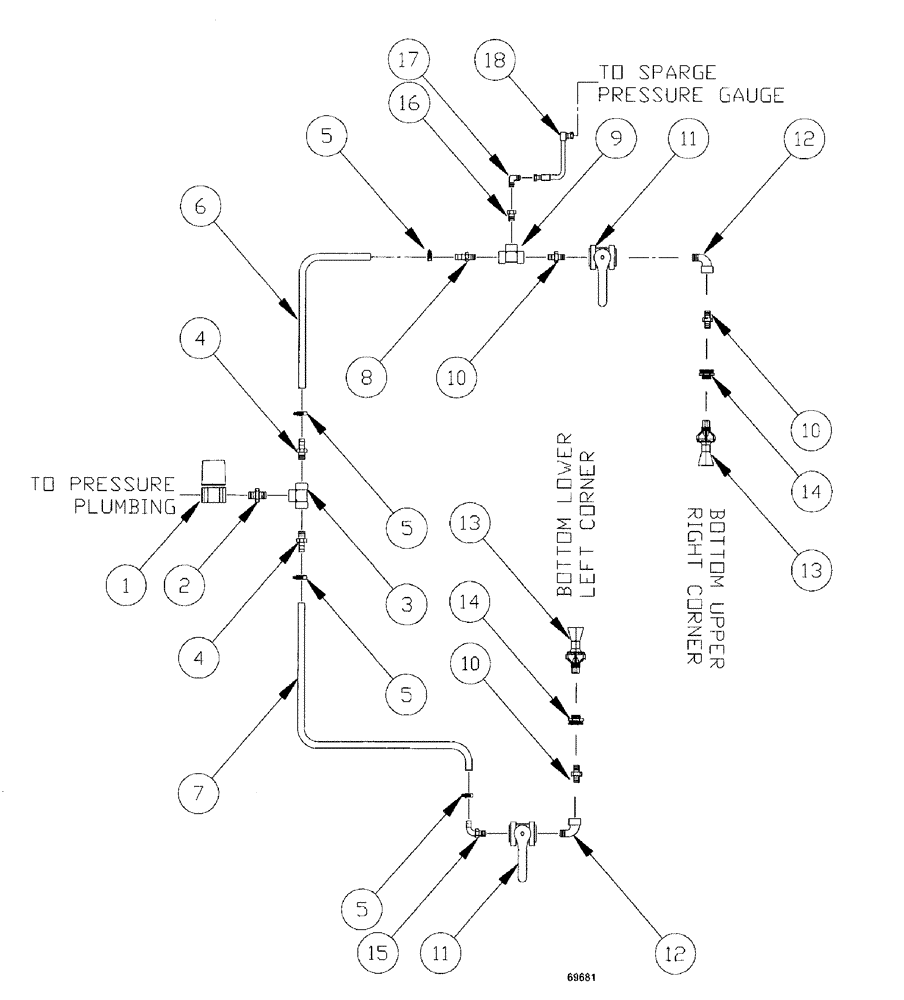

Запчасти Case IH SPX3185 (180) - LIQUID PLUMBING, 750 GALLON ELIPTICAL POLY-SPARGE (78) - SPRAYING

1

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

2

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

3

BN73629

TEE

1" Poly Pipe

1шт.

4

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

2шт.

5

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

4шт.

6

BN53740

HOSE,0.75" ID x 57.00"

EPDM

1шт.

7

BN53783

HOSE

EPDM, 3/4" ID x 39"

1шт.

8

BN73561

FITTING

BARB, 3/4 NPT x 3/4, HS

1шт.

9

BN73560

TEE

poly pipe, 3/4"

1шт.

10

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Poly pipe, short, 3/4"

3шт.

11

BN73564

VALVE

3/4" Ball Poly 2 Way

2шт.

12

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

13

BN304428

CONTROL

ADJITATOR, No.Y9270, PP

2шт.

14

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

15

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

16

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

17

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

18

BN67392

HOSE

3/8" x 144" EPDM

1шт.
