Запчасти Case IH SPX3150 (026) - ENGINE, ENGINE PACKAGE (10) - ENGINE

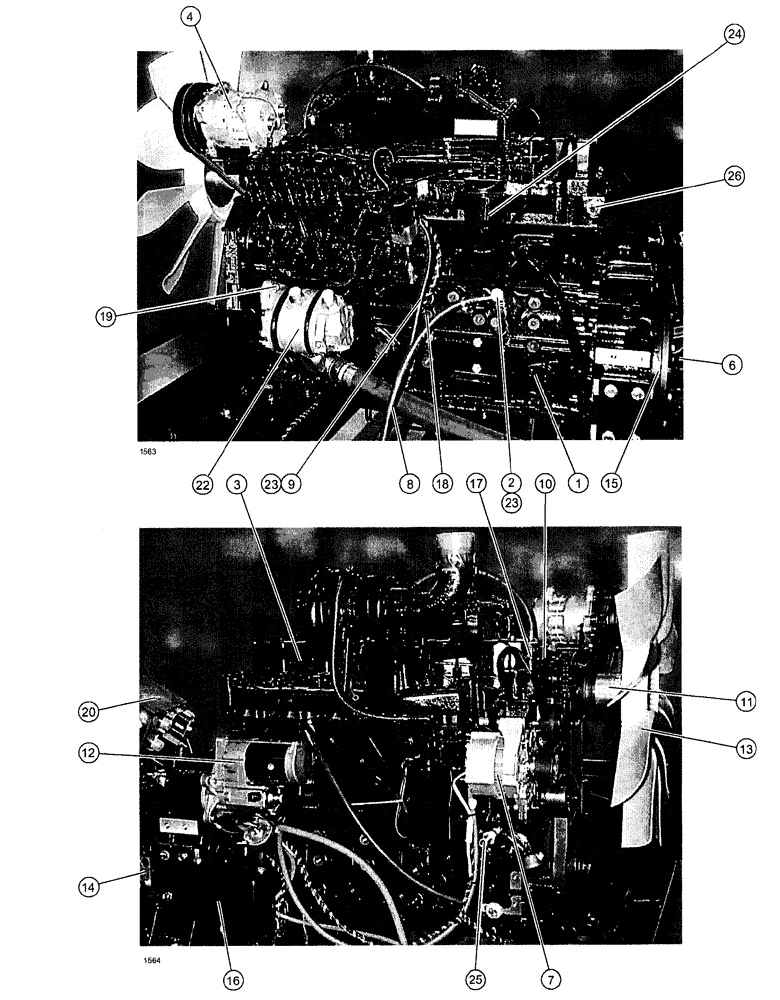

Схема запчастей Case IH SPX3150 - (026) - ENGINE, ENGINE PACKAGE (10) - ENGINE
17
12
1
8
2
14
9
24
20
13
11
18
6
7
15
19
25
23
16
22
4
23
10
3
26

Артикул

Название

Примечание

Количество

1

THROTTLE CABLE ASSEMBLY, see Figure 092

1шт.

2

BN310569

ELBOW

hosebarb, 1/2 MPT x 3/8 x 90º

1шт.

3

ENGINE ASSEMBLY, see Figure 028

1шт.

4

A/C COMPRESSOR PACKAGE

1шт.

See Fig. 086

1шт.

5

MUFFLER ASSEMBLY

1шт.

See Fig. 093

1шт.

Not Shown

1шт.

6

HYDROSTATIC PUMP ASSEMBLY, with adaptor

1шт.

See Fig. 130

1шт.

*

HYDROSTAT SUPPORT MOUNTING PACKAGE

1шт.

See Fig. 091

1шт.

Part of assembly for Ref. 6, model SPX3185

1шт.

7

ALTERNATOR PACKAGE

1шт.

See Fig. 087

1шт.

8

BN311452

FUEL HOSE,9.53 mm ID x 2997.20 mm, SAE 30R6, SAE 30R7

fuel, 3/8" x 118"

1шт.

9

BN311454

FUEL HOSE,7.94 mm ID x 2540.0 mm

return,fuel, 5/16" ID x 100"

1шт.

10

BN311455

VENT PACKAGE head

1шт.

BN0281508

BUSHING

1/2 x 1/4 PTR-S

1шт.

Part of assembly for BN311455

1шт.

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Part of assembly for BN311553

1шт.

BN311584

RESTRICTOR, 1/2 NPT-1/8 bore

1шт.

Part of assembly for BN311553

1шт.

11

BN311553

SPACER

fan, with hardware

1шт.

BN300499

WASHER,M10, 10.9

4шт.

BN301343

BOLT,Hex, M10 x 120, 10.9

4шт.

Part of assembly for BN311553

1шт.

A184548

SPACER,Fan, 89/90mm Thk

Fan, 90 mm

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Part of assembly for BN311553

1шт.

12

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

116928A2

STARTING MOTOR

12V, 4.0 KW, Denso

1шт.

Part of assembly 311554

1шт.

116928A2R

REMAN-STARTER

1шт.

116928A2C

CORE-STARTER

Return Number

1шт.

BN300498

NUT,M10 x 1.5, Cl 8

1шт.

Part of assembly 311554

1шт.

258820A1

SCREW

M5 x 8

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Part of assembly 311554

1шт.

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

Part of assembly 311554

1шт.

86509828

LOCK WASHER,M5

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

892-11010

LOCK WASHER,M10

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

13

BN311565

FAN,9 Blades, 660.4mm OD

26" dia.

1шт.

14

HYDROSTAT LINKAGE PACKAGE

1шт.

See Fig. 099

1шт.

15

FLYWHEEL COUPLER ASSEMBLY

1шт.

See Fig. 029

1шт.

16

SOLENOID MOUNT ASSEMBLY, with shield

1шт.

See Fig. 096

1шт.

17

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

18

BN319998

SENDER UNIT

oil pressure

1шт.

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

Service part for 334213A1

1шт.

19

BN310636

STUD

M12-1.75 x 90 8.8

2шт.

9706685

NUT,M12 x 1.75, Cl 8

2шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Associate part for 310636

1шт.

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Associate part for 310636

1шт.

20

VALVE ASSY., flush and shift, with fitting

1шт.

See Fig. 134

1шт.

21

RADIATOR, not shown

1шт.

See Fig. 100

1шт.

22

PUMP ASSY., tandem, with adapter

1шт.

See Fig. 130

1шт.

23

BN76094

HOSE CLAMP

SS #M4

2шт.

24

FILTER, fuel, not shown as remote mounted

1шт.

See Fig. 102

1шт.

25

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

26

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Выбрано товаров: 79
