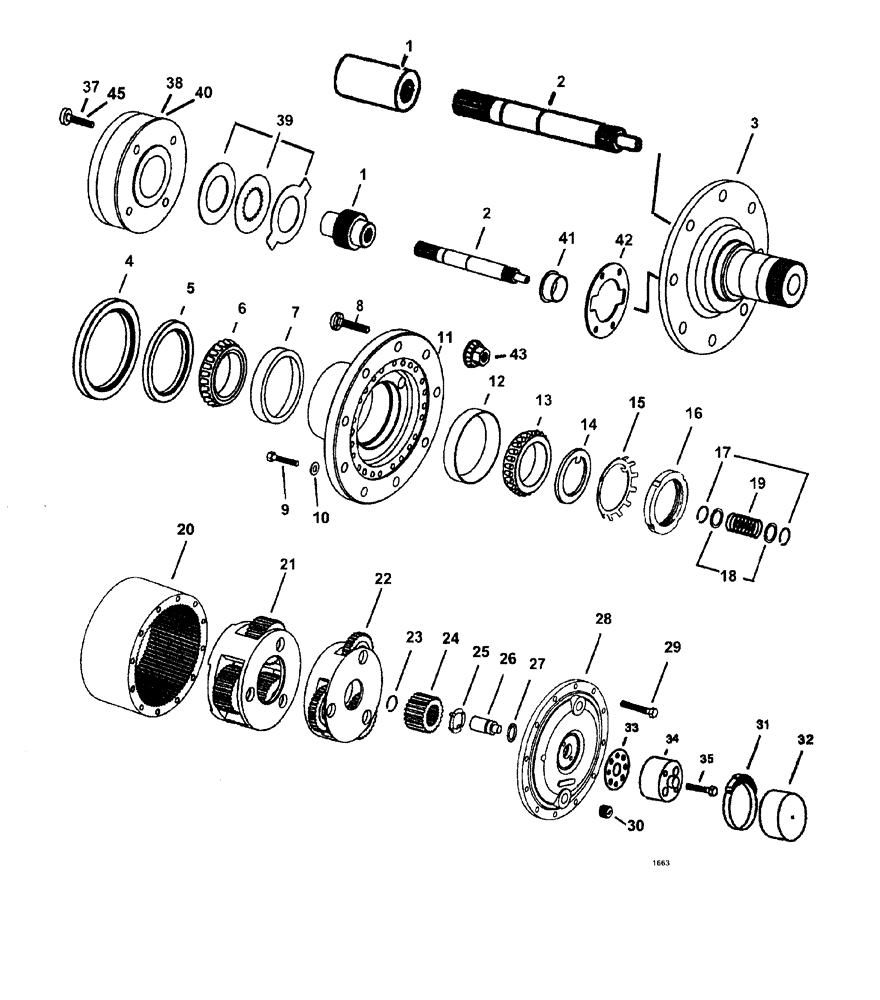

Запчасти Case IH SPX3150 (124) - HUB, WHEEL AND TIRES, HUB ASSEMBLY, MODEL 7, SPX3150 (44) - WHEELS

1

BN98370

COUPLING

without brake

1шт.

2

BN98793

SHAFT

input, 15:1, 19:1, 21:1, 24:1, without brake, or use 98731

1шт.

2

BN98731

SHAFT

input, 32:1, 28:1, without brake, or use BN98793

1шт.

3

BN98732

SPINDLE

without brake

1шт.

1

BN313528

COUPLING

splined, with brake

1шт.

2

BN98794

SHAFT

input, 19:1, 21:1, 24:1, with brake, or use BN98795

1шт.

2

BN98795

SHAFT

input, 28:1, with brake, or use BN98794

1шт.

3

BN313476

SPINDLE

with brake

1шт.

37

BN50817

BOLT

Hex, 1/2"-13 x 3", G8

2шт.

38

BN313465

BRAKE ASSY.

PISTON ASSEMBLY, with brake

1шт.

39

BN313466

REPAIR KIT

DISC PACK, with brake

1шт.

40

BN313467

O-RING KIT

& gasket, with brake

1шт.

41

BN313471

FLANGED BEARING

Sleeve, w/ brake

1шт.

42

BN313470

GASKET,0.76mm Thk

Auburn

1шт.

45

BN313500

WASHER

flat

2шт.

4

BN98740

SEAL

trash

1шт.

BN98855

SEAL KIT

spindle

1шт.

Includes: 98809 seal compound and Refs. 5, 15, 27, associate part for BN98740

1шт.

BN98802

SEAL KIT

bearing

1шт.

Includes: BN98809 seal compound and Refs. 5, 6, 7, 12, 13, 15, 27, associate part for BN98740

1шт.

5

BN98723

SEAL

oil

1шт.

6

BN98738

ROLLER BEARING,73.03mm ID x 30.16mm W

Inner

1шт.

7

513379

BEARING CUP,117.47mm OD x 23.81mm W

Inner

1шт.

8

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

9шт.

9

BN66932

BOLT

hex head, GR. 8

18шт.

10

BN98494

WASHER

flat

18шт.

11

BN98734

HUB

1шт.

12

BN276477

BEARING CUP

Race, Timken 3920

1шт.

13

BN98736

ROLLER BEARING

Outer

1шт.

14

BN98741

WASHER

thrust

1шт.

15

BN98742

LOCK WASHER

1шт.

16

BN98743

BEARING LOCK NUT

BEARING

1шт.

17

BN98495

SNAP RING

Retaining

2шт.

18

BN98496

WASHER

2шт.

19

BN98497

SPRING

disengage

1шт.

20

BN98744

RING GEAR

1шт.

21

BN98797

CARRIER

SECONDARY ASSY., 21:1, 24:1

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

22

BN66069

CARRIER

Primary Assembly - 24:1 Ratio (3 Gears-28 Teeth Each) Secondary Sun Gear - 19 Teeth)

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

22

BN67199

CARRIER

PRIMARY ASSY., 21:1 ratio, 3 GEARS, 27 teeth each, secondary sun gear, 19 teeth, or use 66069

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

23

BN98792

RETAINER

RING retaining, without brake 21:1, with brake 24:1

1шт.

24

BN67166

GEAR

Primary Sun 15:1 Ratio (28 teeth), or use either 66070, 67198, 66068, 66064

1шт.

24

BN66070

SUN GEAR

PRIMARY 19:1 ratio, 25 teeth, or use either 67166, 67198, 66068, 66064

1шт.

24

BN67198

SUN GEAR

PRIMARY 21:1 ratio, 22 teethy, or use either 67166, 66070, 66068, 66064

1шт.

24

BN66068

GEAR

PRIMARY SUN 24:1 ratio, 19 teeth, or use either 67166, 66070, 67198, 66064

1шт.

24

BN66064

SUN GEAR

PRIMARY 28:1 ratio, 16 teeth, or use either 67166, 66070, 67198, 66068

1шт.

24

BN66064

SUN GEAR

PRIMARY 32:1 ratio, 16 teeth, or use either 67166, 66070, 67198, 66068

1шт.

25

BN98501

THRUST WASHER

1шт.

26

BN98728

PLUNGER

disengage

1шт.

27

BN98729

SEAL

plunger

1шт.

28

BN98733

COVER

1шт.

29

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

8шт.

30

BN98487

PLUG

magnetic

1шт.

31

BN67578

CLAMP

plastic

1шт.

32

BN27372

CAP

hub cover

1шт.

33

BN98506

GASKET

quick release hub

1шт.

34

BN98860

COUPLING

Quick Disconnect

1шт.

35

BN50561

BOLT hex head

2шт.

36

BN98850

COUPLING

Quick Disconnect Assy

1шт.

Includes Refs. 33, 34, 35

1шт.

43

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

9шт.

BN98809

SEAL

COMPOUND

1шт.

Not Shown

1шт.

BN67985

PLUG WRENCH

mod. 7 BNG nut

1шт.

Not Shown

1шт.

BN67986

SPINDLE

DRIVER, mod. 7 and 8

1шт.

Not Shown

1шт.

BN66385

HUB

complete, without brake 21:1

1шт.

BN312644

HUB

complete, with brake 24:1

1шт.
