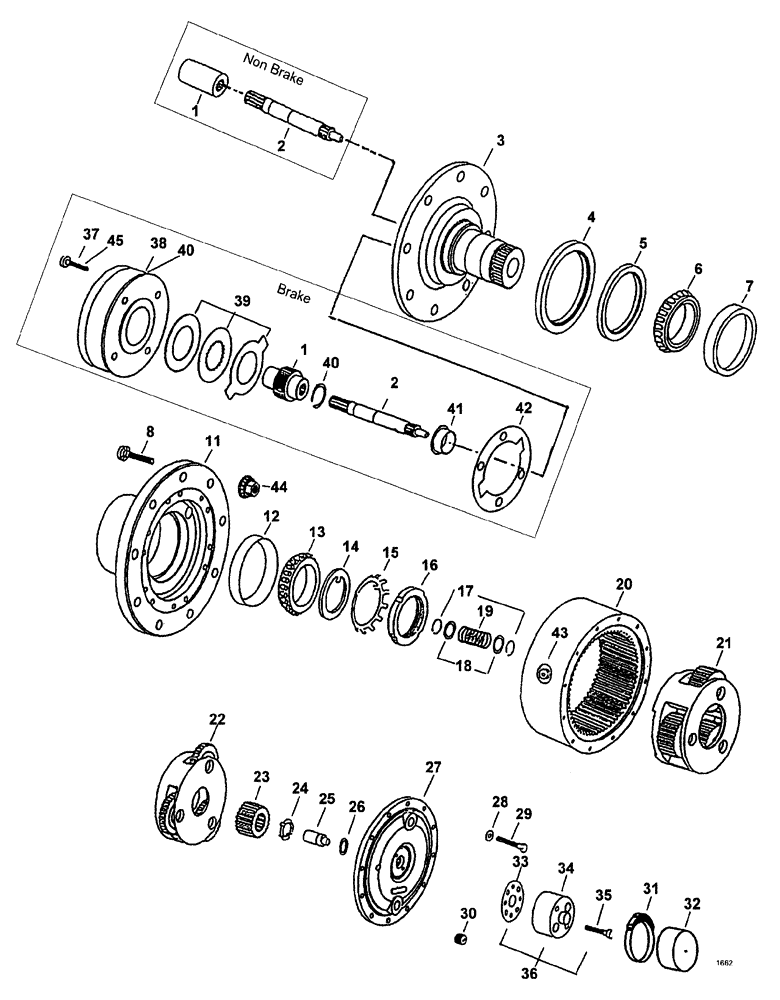

Запчасти Case IH SPX3150 (122) - HUB, WHEEL AND TIRES, HUB ASSEMBLY, MODEL 8, SPX3185 (44) - WHEELS

1

BN98822

COUPLING

without brake

1шт.

2

BN98842

SHAFT

Input, 152mm OAL, 12 Teeth on Small End, 13 Teeth on Large End

1шт.

3

BN98821

SPINDLE

#8B

1шт.

1

BN313528

COUPLING

splined, with brake

1шт.

2

BN98842

SHAFT

Input, 152mm OAL, 12 Teeth on Small End, 13 Teeth on Large End

1шт.

3

BN313477

SPINDLE

Auburn (#8 hub)

1шт.

37

BN50817

BOLT

Hex, 1/2"-13 x 3", G8

2шт.

38

BN313465

BRAKE ASSY.

PISTON ASSEMBLY, with brake

1шт.

39

BN313466

REPAIR KIT

DISC PACK, with brake

1шт.

40

BN313467

O-RING KIT

& gasket, with brake

1шт.

41

BN313471

FLANGED BEARING

Sleeve, w/ brake

1шт.

42

BN313470

GASKET,0.76mm Thk

Auburn

1шт.

45

BN313500

WASHER

flat

2шт.

4

BN98817

SEAL

trash

1шт.

5

BN98810

SEAL

oil

1шт.

6

BN98812

ROLLER BEARING

1шт.

7

9823418

BEARING CUP,130mm OD x 24mm W

1шт.

8

BN98840

BOLT

wheel #8B hub

10шт.

11

BN313469

HUB

Auburn

1шт.

12

BN98825

BEARING CUP

1шт.

13

BN98826

ROLLER BEARING

1шт.

14

BN98844

THRUST WASHER

1шт.

15

BN98818

LOCK WASHER

1шт.

16

BN98829

LOCK NUT

bearing

1шт.

17

BN98827

RING

retaining

2шт.

18

BN98843

WASHER

thrust

2шт.

19

BN98830

SPRING

1шт.

20

BN69527

RING GEAR

85 teeth, 30 : 1, without brake, or use 69526

1шт.

20

BN69526

RING GEAR

(81 Teeth) 22:1 with Brake, or use 69527

1шт.

21

BN69528

CARRIER

ASSY. secondary, 30 : 1, 3 gears, 34 teeth, without brake, or use 69529

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

21

BN69529

CARRIER

ASSY. secondary, 22 : 1, 3 gears, 30 teeth, with brake, or use 69528

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

22

BN69530

CARRIER

primary assembly - 30:1 non brake (3 gears, 32 teeth each) (secondary sun gear - 17 teeth)

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

22

BN69531

CARRIER

primary assembly - 22:1 with brake (3 gears-30 teeth each) (secondary sun gear - 21 teeth)

1шт.

Assembly 21 and 22 must be replaced as assemblies, they cannot be rebuilt.

1шт.

23

BN69533

SUN GEAR

primary 30:1 non brake (20 teeth)

1шт.

23

BN69532

SUN GEAR

primary 22:1 with brake (21 teeth)

1шт.

24

BN98501

THRUST WASHER

1шт.

25

BN98728

PLUNGER

disengage

1шт.

26

BN98729

SEAL

plunger

1шт.

27

BN302055

COVER

hub - #8

1шт.

28

BN98494

WASHER

flat

12шт.

29

BN98838

BOLT

3/8-16 x 6-3/4", Thread Length 1-1/4", Hex Head

12шт.

30

BN98819

PLUG

pipe

1шт.

31

BN67578

CLAMP

plastic

1шт.

32

BN27372

CAP

hub cover

1шт.

33

BN98506

GASKET

quick release hub

1шт.

34

BN98860

COUPLING

Quick Disconnect

1шт.

35

BN50561

BOLT hex head

2шт.

36

BN98850

COUPLING

Quick Disconnect Assy

1шт.

Includes Refs. 33, 34, 35

1шт.

43

BN98487

PLUG

magnetic

1шт.

44

BN52332

WHEEL NUT

Wheel - Flanged

10шт.

BN98858

SEAL KIT

1шт.

Not Shown

1шт.

Includes Refs. 5, 15, 26 & BN98809 sealing compound

1шт.

BN98809

SEAL

COMPOUND

1шт.

Not Shown

1шт.

BN98859

WHEEL BEARING KIT

BRG

1шт.

Not Shown

1шт.

Includes Refs. 5, 6, 7, 12, 13, 15, 26

1шт.

BN67984

BEARING LOCK NUT

mod. 8 BNG nut

1шт.

Not Shown

1шт.

BN67986

SPINDLE

DRIVER, mod. 7/8

1шт.

Not Shown

1шт.

BN69011

HUB

#8 Complete, Without Brake, Rear 30:1

1шт.

BN312646

HUB

complete w/brake, FR 22:1

1шт.
