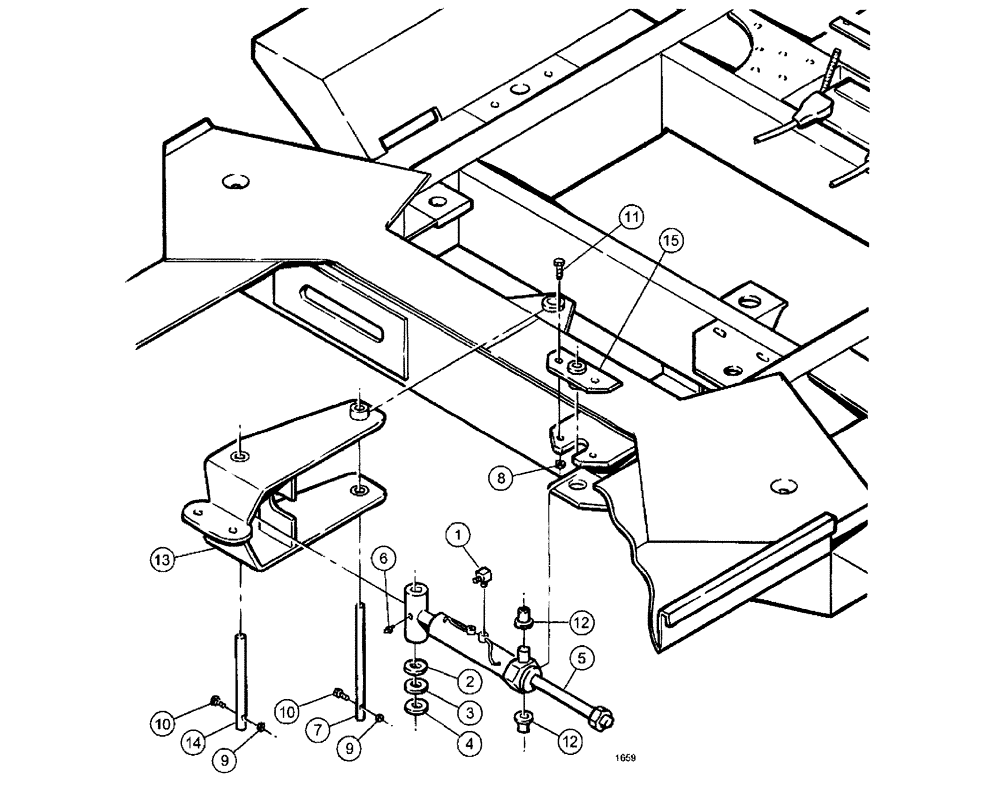

Запчасти Case IH SPX3150 (120) - SUSPENSION AND FRAME, STEERING ARM ASSEMBLY (39) - FRAMES AND BALLASTING

1

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

2шт.

2

BN65463

WASHER

Machine Bushing - 18 GA

2шт.

3

BN65464

WASHER

BUSHING machine, 14 ga.

2шт.

4

BN65465

WASHER

Machine Bushing - 10 GA

2шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER steering, hydraulic

1шт.

See Fig. 160

1шт.

6

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

7

BN25516

PIN

pivot - 1.03" x 12.5"

1шт.

8

BN50072

NUT

Hex, 1/2"-13, G5

2шт.

9

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.

10

BN50269

BOLT

hex head, 3/8-16 x 2.25, G5

2шт.

11

BN50894

BOLT

1/2"-13 x 2.5, HH, 5, PL

2шт.

12

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

flange, plastic, 1"

2шт.

13

BN69156

ARM

steering, 8" frame

1шт.

14

BN63780

PIN

1.03 dia. CRS x 10

1шт.

15

BN63790

BUSHING

1шт.
