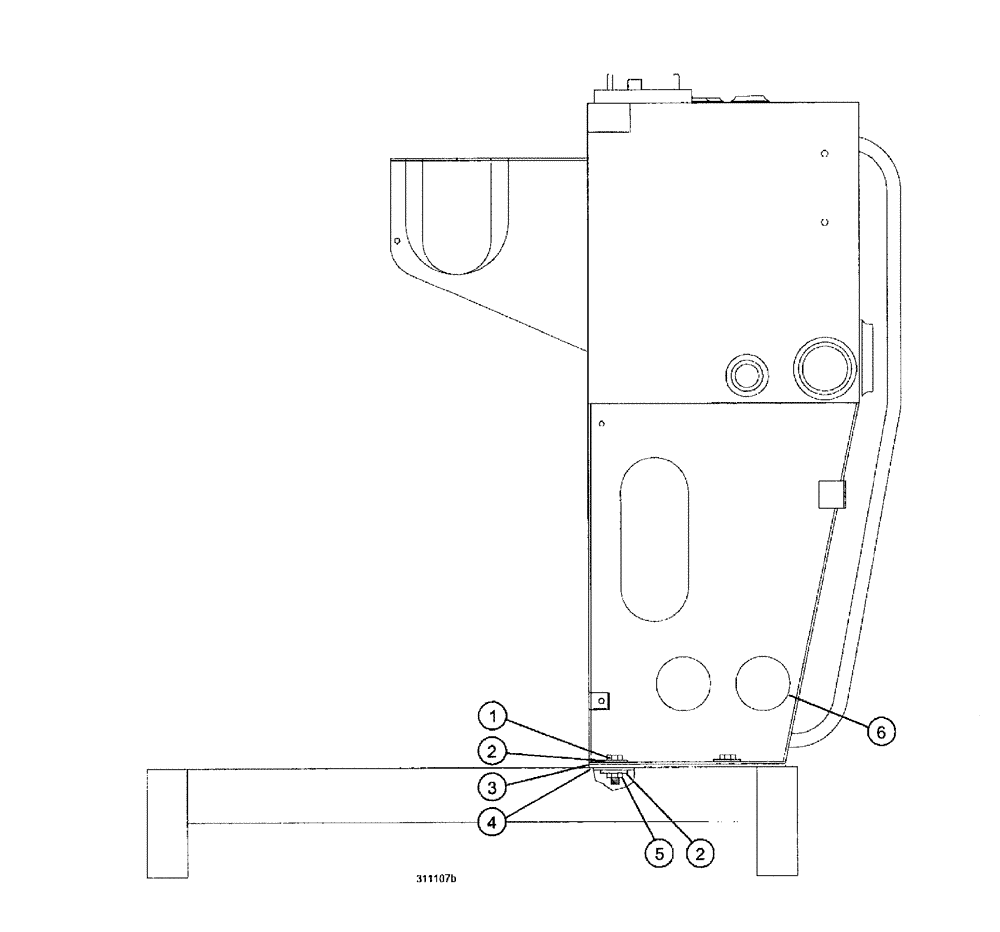

Запчасти Case IH SPX3150 (119) - SUSPENSION AND FRAME, OIL TANK MOUNTING (39) - FRAMES AND BALLASTING

*1

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

2

BN300176

WASHER

Flat, 1/2, G8

8шт.

3

BN300172

PLATE

2шт.

4

BN310999

PLATE spacer

2шт.

5

BN50998

LOCK NUT

top, 1/2-13, 8, PL

4шт.

6

BN303901

TRIM edge, 13"

1шт.

ns

NSS

NOT SOLD SEPARAT

HOSE, 1.25" suction x 35"

1шт.

See Fig. 130

1шт.

ns

NSS

NOT SOLD SEPARAT

HOSE, 1.25" suction x 30"

1шт.

See Fig. 130

1шт.

ns

NSS

NOT SOLD SEPARAT

HOSE, 1.5" suction x 66"

1шт.

See Fig. 130

1шт.
