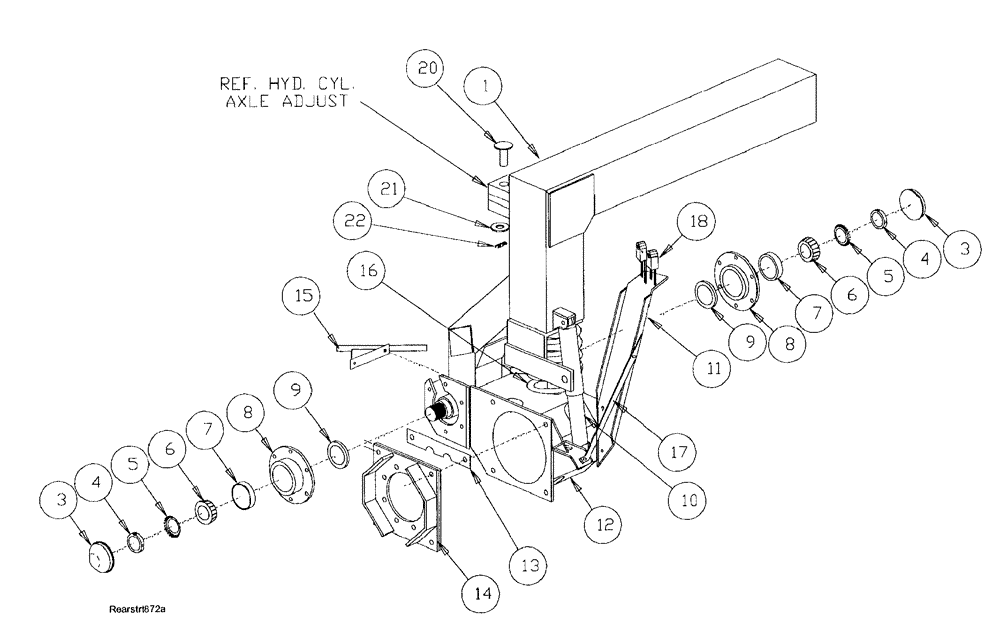

Запчасти Case IH SPX3150 (116) - SUSPENSION AND FRAME, STRUT ASSEMBLY, REAR (39) - FRAMES AND BALLASTING

1

BN323926

STRUT

LH

1шт.

Shown, or use BN302865

1шт.

1

BN323925

STRUT

RH

1шт.

Same general part as BN25513 but opposite side

1шт.

1

BN323924

STRUT

LH, Low Profile

1шт.

Or use BN25513

1шт.

low profile only

1шт.

1

BN323923

STRUT

RH, Low Profile

1шт.

Same general part as BN302865 but opposite side

1шт.

low profile only

1шт.

3

BN68788

DUST CAP

with drill and tap

4шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated part for BN68788

1шт.

4

BN80443

LOCK NUT

4шт.

5

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

6

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

7

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

8

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associate part for BN29071

1шт.

9

BN31074

SEAL

4шт.

10

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

11

BN65571

SUPPORT

rear hoses, LH

1шт.

Shown, or use BN63923

1шт.

11

BN65572

SUPPORT

rear hoses, RH

1шт.

Same general part as BN65571 but opposite side

1шт.

11

BN63923

SUPPORT

LH

1шт.

Or use BN65571

1шт.

low profile only

1шт.

11

BN63924

SUPPORT

RH

1шт.

Same general part as BN63923

1шт.

low profile only

1шт.

12

BN66421

HOUSING

LH

1шт.

Shown

1шт.

BN66420

HOUSING

RH

1шт.

Same general part as BN66421 but opposite side

1шт.

13

BN67444

SHIM

Auburn hubs

4шт.

14

BN66291

BRACKET

2шт.

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

Associate part for BN66291

1шт.

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associate part for BN66291

1шт.

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associate part for BN66291

1шт.

87342967

BOLT

5/8"-18 x 2.5", Holds Wheel Hub to Bracket Ref 14

16шт.

BN50775

LOCK NUT

5/8"-18, Holds Wheel Hub to Bracket Ref 14

16шт.

15

BN29690

DEFLECTOR

2шт.

16

BN309783

COIL SPRING

1.07" Wire x 7.37" od x 14.154" Long

2шт.

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associate part for BN309783

1шт.

17

BN65576

SUPPORT

BRACE R.H.

1шт.

Shown

1шт.

BN65577

BRACKET

BRACE L.H.

1шт.

Same general part as BN65576 but opposite side

1шт.

18

BN57235

CLAMP

Assy, 1"

4шт.

20

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

21

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

2шт.

22

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16" x 3/4", Type E

2шт.
