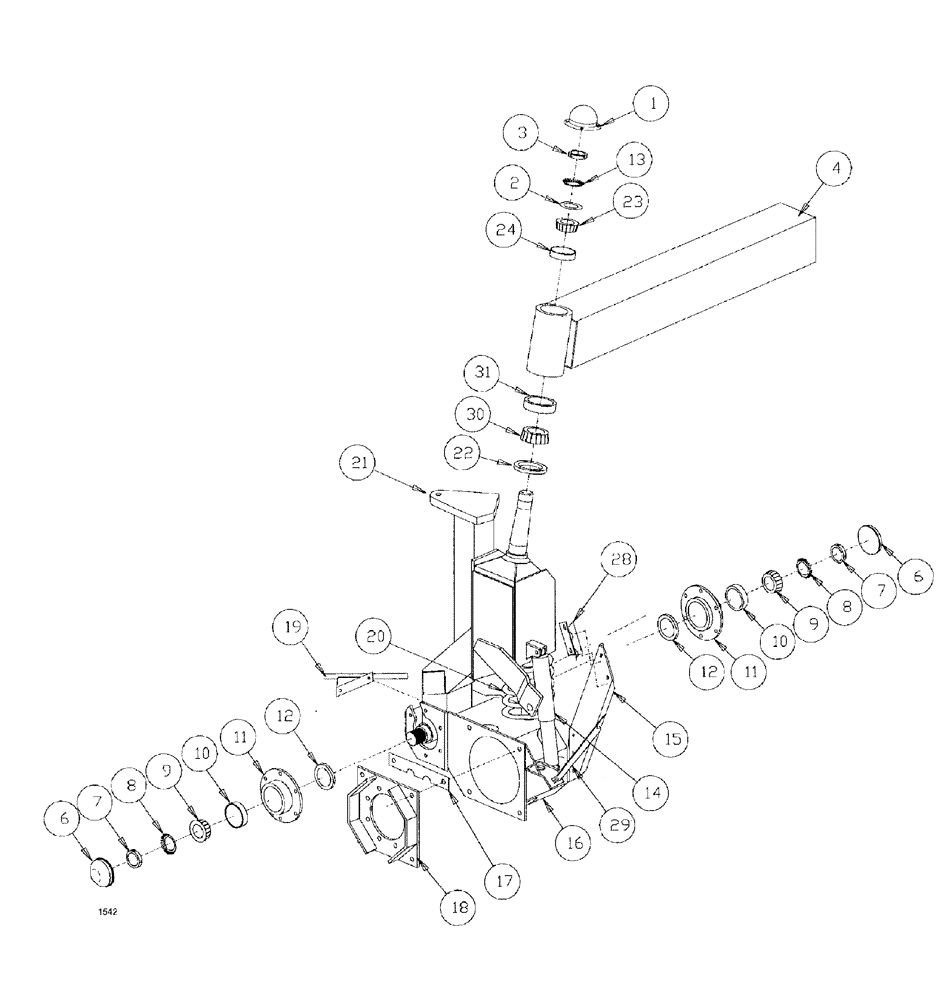

Запчасти Case IH SPX3150 (114) - SUSPENSION AND FRAME, STRUT ASSEMBLY, FRONT (39) - FRAMES AND BALLASTING

1

BN89874

DUST CAP

2шт.

2

BN66209

WASHER,65.79mm ID x 95.25mm OD x 9.65mm Thk

spacer, front spindle

2шт.

3

BN58124

BEARING LOCK NUT

2шт.

4

BN68946

AXLE

front, LH

1шт.

Shown, or use BN303548

1шт.

4

BN68947

AXLE

front, RH

1шт.

Same general part as BN68946 but opposite side

1шт.

4

BN303548

AXLE

LH, low profile

1шт.

Or use BN68946

1шт.

BN303470

AXLE

RH, low profile

1шт.

Same general part as BN303548 but opposite side

1шт.

6

BN68788

DUST CAP

with drill and tap

4шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated part for BN68788

1шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated part for BN29071

1шт.

12

BN31074

SEAL

4шт.

13

BN58125

LOCK WASHER

lock, series wh

2шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN65573

BRACKET

SUPPORT L.H.

1шт.

Shown, or use BN63920

1шт.

15

BN65574

BRACKET

SUPPORT R,H.

1шт.

Same general part as BN65573 but opposite side

1шт.

15

BN63920

SUPPORT

LH

1шт.

Or use BN65573

1шт.

BN63921

SUPPORT

R.H., low profile

1шт.

Same general part as BN63920 but opposite side

1шт.

16

BN66423

BRACKET

HOUSING L.H.

1шт.

Shown

1шт.

BN66422

FRAME

HOUSING R.H.

1шт.

Same general part as BN66423 but opposite side

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66291

BRACKET

2шт.

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

Associate part for BN66291

1шт.

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associate part for BN66291

1шт.

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associate part for BN66291

1шт.

87342967

BOLT

5/8"-18 x 2.5", Holds Wheel Hub to Bracket Ref 18

16шт.

BN50775

LOCK NUT

5/8"-18, Holds Wheel Hub to Bracket Ref 18

16шт.

19

BN29690

DEFLECTOR

2шт.

20

BN309783

COIL SPRING

1.07" Wire x 7.37" od x 14.154" Long

2шт.

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associate part for BN309783

1шт.

21

BN323756

STRUT

Front, LH

1шт.

Shown, or use BN302864

1шт.

21

BN65229

STRUT

RH

1шт.

Same general part as BN65228 but opposite side

1шт.

21

BN323922

STRUT

LH, Low Profile

1шт.

Or use BN65228

1шт.

BN323921

STRUT

RH, Low Profile

1шт.

Same general part as BN302864 but opposite side

1шт.

22

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

2шт.

28

BN63919

BRACKET

Mount - Hyd hose

2шт.

29

BN65577

BRACKET

BRACE L.H.

1шт.

Shown

1шт.

BN65576

SUPPORT

BRACE R.H.

1шт.

Same general part as BN65577 but opposite side

1шт.

30

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

2шт.

31

BN89875

RACE

2шт.
