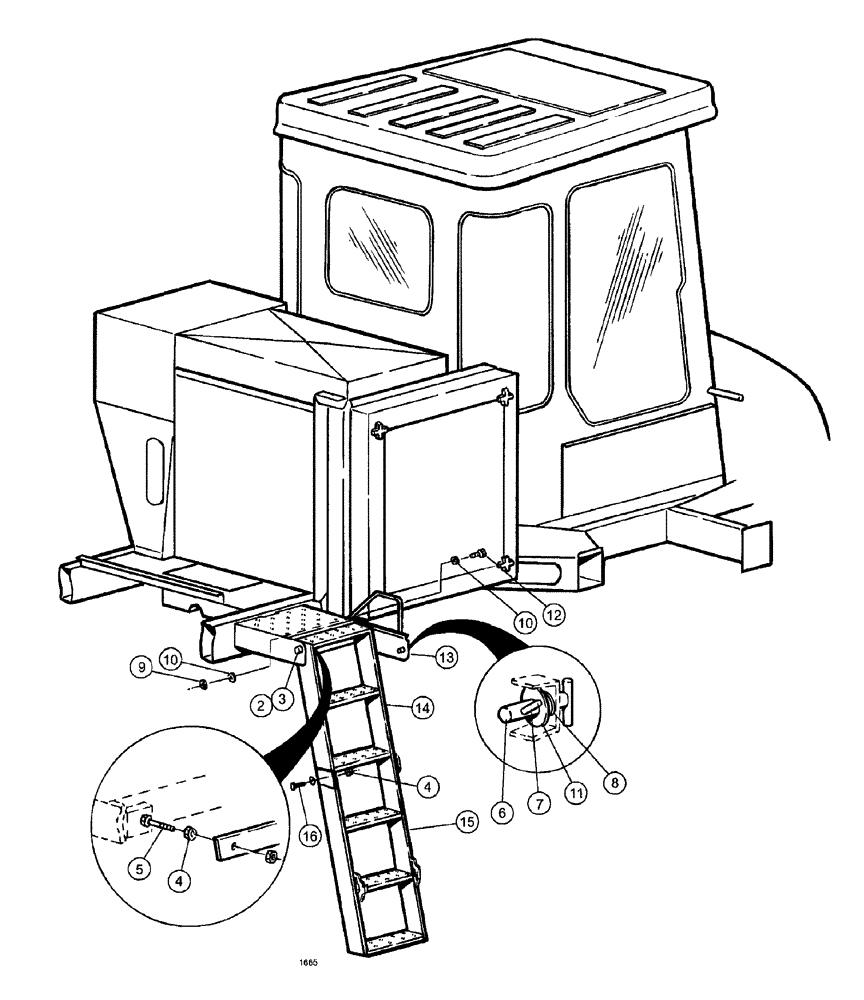

Запчасти Case IH SPX3150 (112) - SUSPENSION AND FRAME, LADDER, R.H. (39) - FRAMES AND BALLASTING

2

BN25138

SHAFT

1" x 17.25"

1шт.

3

BN50605

PIN, ROLL

7/32 x 1-1/2

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

6шт.

5

BN50973

BOLT

1/2"-13 x 2.75, HH, G5

2шт.

6

BN25257

PIN

Side Ladder

1шт.

7

BN31444

PIN, ROLL

1/4 x 1-1/2

1шт.

Roll pin Ref. 7 must be in second hole to engage ladder stop

1шт.

8

BN31937

SPRING

Compression, .905 x .765 2

1шт.

9

BN50061

LOCK NUT

3/8-16", UNC, Whiz

4шт.

10

BN50145

WASHER

3/8, G5

4шт.

11

BN50157

WASHER

3/4, G5

1шт.

12

BN50367

BOLT

3/8"-16 x 1", G5

4шт.

13

BN63581

LATCH

Ladder

1шт.

14

BN63582

LADDER

Bi-Fold Top

1шт.

15

BN312542

LADDER

bi-fold, 3 step

1шт.

15

BN63583

LADDER

bi fold, 2 step

1шт.

low profile only

1шт.

16

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.
