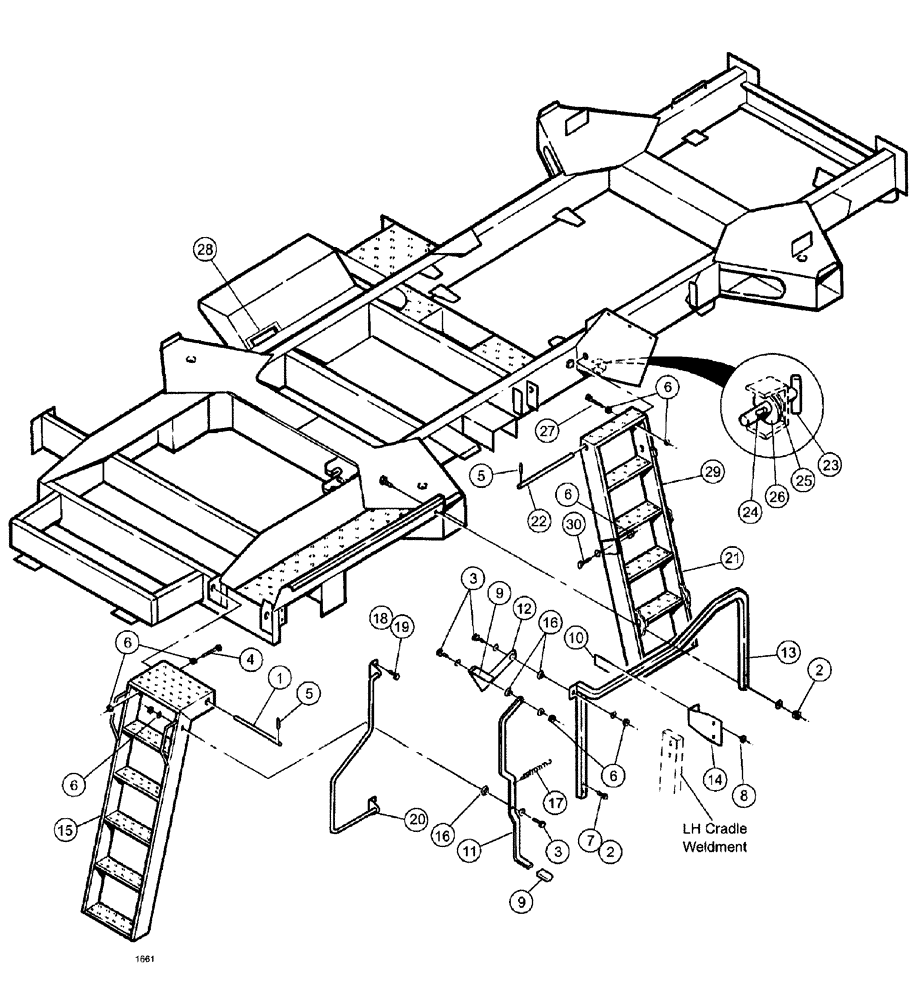

Запчасти Case IH SPX3150 (110) - SUSPENSION AND FRAME, LADDERS, L.H. (39) - FRAMES AND BALLASTING

1

BN25138

SHAFT

1" x 17.25"

1шт.

2

BN50056

LOCK NUT

5/16"-18, Whiz

4шт.

3

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

4

50286

BOLT Hex, 1/2"-13 x 1 3/4", G5

2шт.

5

BN50605

PIN, ROLL

7/32 x 1-1/2

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

13шт.

7

50842

BOLT Hex, 5/16"-18 x 1 1/2", G5

4шт.

8

280129

NUT,1/4"-20

2шт.

9

BN67835

GRIP

handle

2шт.

10

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

1шт.

11

BN307637

HANDLE

LINK lift, ladder

1шт.

12

BN68064

LINKAGE

upper

1шт.

13

BN68060

RAIL

1шт.

14

BN68073

BRACKET

Rail Stiffener

1шт.

15

BN311242

LADDER

1шт.

15

BN67829

LADDER

1шт.

low profile only

1шт.

16

BN68133

BUSHING

6шт.

17

BN71134

SPRING

Tension, 1" x 5"

1шт.

17

BN2397941-50

SPRING

Tension, Heavy Duty, 1 13/16" od x 13"

1шт.

Used on early models

1шт.

18

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

19

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

4шт.

20

BN67722

HANDLE

grab, front ladder

1шт.

21

BN312542

LADDER

bi-fold, 3 step

1шт.

21

BN63583

LADDER

bi fold, 2 step

1шт.

low profile only

1шт.

22

BN24557

PIN

1" CFRD x 18.75

1шт.

23

BN25257

PIN

Side Ladder

1шт.

24

BN31444

PIN, ROLL

1/4 x 1-1/2

1шт.

25

BN31937

SPRING

Compression, .905 x .765 2

1шт.

26

BN50157

WASHER

3/4, G5

1шт.

27

50288

BOLT Hex, 1/2"-13 x 2", G5

2шт.

28

BN24151

SEAL clip on, 12.5"

1шт.

29

BN63582

LADDER

Bi-Fold Top

1шт.

30

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.
