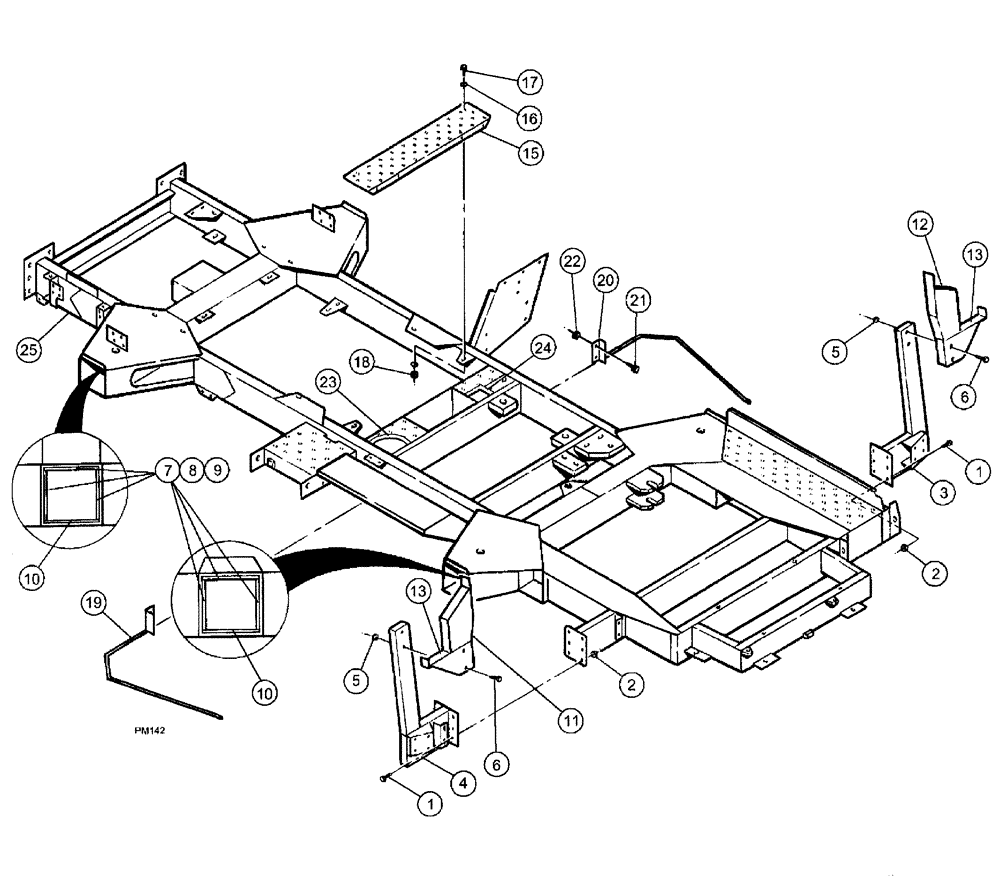

Запчасти Case IH SPX3150 (106) - SUSPENSION AND FRAME, FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

2

86992215

LOCK NUT,1/2"-13, GC

6шт.

3

BN66275

SUPPORT

L.H. cradle

1шт.

4

BN66392

SUPPORT

R.H. cradle

1шт.

5

BN50072

NUT

Hex, 1/2"-13, G5, PL

4шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

7

BN50056

LOCK NUT

5/16"-18, Whiz

16шт.

8

BN50014

BOLT

5/16"-18 x .75, EH

16шт.

9

BN25527

LINER

nylatron .187 x 7 x 40

14шт.

10

BN303473

LINER

Nylatron w/notch

2шт.

11

BN29934

SUPPORT

Cradle-RH

1шт.

60' boom, or use BN24465 or BN66528

1шт.

11

BN24465

CRADLE

RH

1шт.

75' boom, or use BN29934 or BN66528

1шт.

11

BN66528

SUPPORT

CRADLE R.H.

1шт.

90' boom, shown, or use BN29934 or BN24465

1шт.

12

BN29933

SUPPORT

Cradle-LH

1шт.

60' boom, or use BN24464 or BN66596

1шт.

12

BN24464

CRADLE

LH

1шт.

75' boom, or use BN29933 or BN66596

1шт.

12

BN66596

SUPPORT

CRADLE L.H.

1шт.

90' boom, shown, or use BN29933 or BN24464

1шт.

13

BN29680

LINER

plastic, 3/16 x 2 x 13.75

2шт.

60' boom only

1шт.

13

BN308059

ANGLE

STOP

2шт.

60' boom only

1шт.

15

BN25394

PLATFORM

Deck 14GA., HRS, 11.5 x 44.0

1шт.

Shown, or use BN24158

1шт.

15

BN24158

LOAD DECK

14 ga. HRS, 13" x 44"

1шт.

Eliptical tank with top flange, or use BN25394

1шт.

16

BN50142

WASHER,5/16", Stainless Steel

12шт.

17

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

18

BN68210

LOCKNUT, 5/16-18, CTR, SS

6шт.

Used on LH for low profile

1шт.

19

BN25822

GUIDE

RH hose roller

1шт.

20

BN25823

GUIDE

LH hose roller

1шт.

Used on RH for low profile

1шт.

21

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

86992215

LOCK NUT,1/2"-13, GC

4шт.

23

BN303902

SOFT TRIM

EDGE 9 3/4"

2шт.

24

BN303903

SOFT TRIM

EDGE 6 3/4"

1шт.

25

310413

TUBE,0.983 - 1.008" OD, 26.72" Length

SPARE PART frame

1шт.
