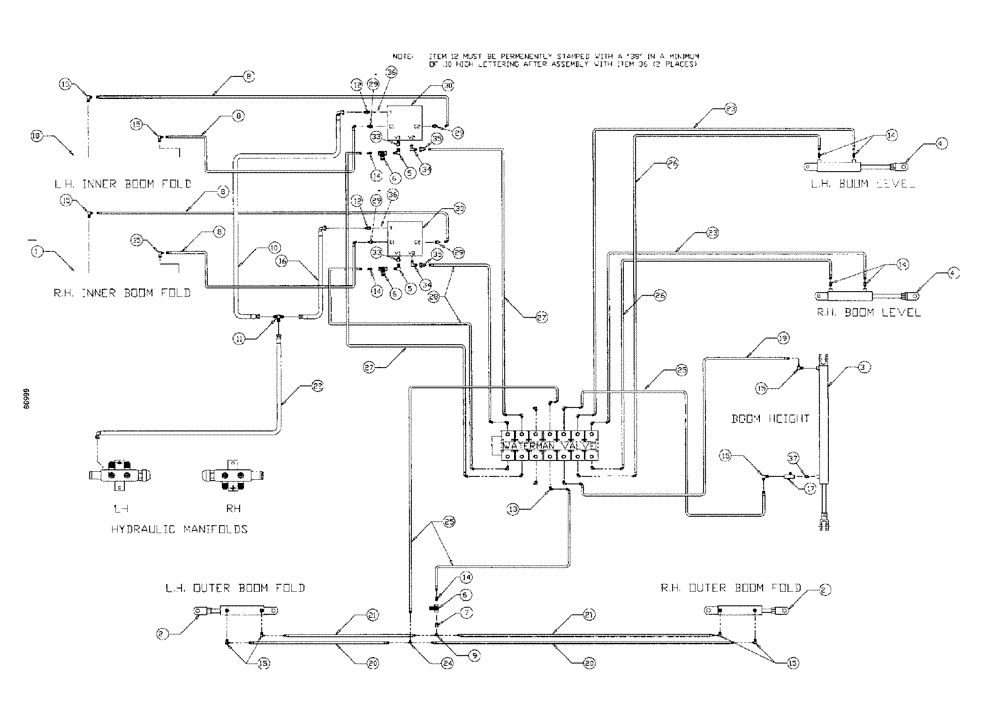

Запчасти Case IH SPX3150 (140) - HYDRAULIC PLUMBING, 90 BOOM (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

CYLINDER inner boom fold, R.H.

1шт.

See Fig. 155

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER outer boom fold

2шт.

See Fig. 157

1шт.

3

NSS

NOT SOLD SEPARAT

CYLINDER boom height

1шт.

See Fig. 153

1шт.

4

NSS

NOT SOLD SEPARAT

CYLINDER boom level

2шт.

See Fig. 159

1шт.

5

BN51123

ADAPTER

90º, 3/8-18 NPT

2шт.

6

BN53856

HYDRAULIC VALVE

needle, 3/8" NPT, port

3шт.

7

BN51352

BUSHING

1/4-18 x 3/8-18 NPT

1шт.

8

BN53824

HOSE,6.35mm ID x 965.2mm L, SAE 100R1

1/4" ID x 38" 100R1

4шт.

9

BN53711

TEE

1/4 NPT x 7/16-20 JIC

1шт.

10

BN67131

HYDRAULIC HOSE

1/2" 100R1 x 44"

1шт.

11

BN22159

TEE

3/4-16 37°

1шт.

12

BN68540

FITTING

rework

2шт.

13

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

14

BN22158

ADAPTER,3/8" NPT X 7/16"-20, 37 Degree

7шт.

15

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

10шт.

16

BN53027

HOSE ASSY.

1/2" x 36"

1шт.

17

BN53681

HYDRAULIC VALVE

snubber

1шт.

18

NSS

NOT SOLD SEPARAT

CYLINDER inner boom fold, L.H.

1шт.

See Fig. 155

1шт.

19

BN54178

HOSE,6.35mm ID x 1676.4mm L, SAE 100R1

1/4" x 66", 100R1

1шт.

20

BN66605

HOSE

1/4" ID x 365", 100R1

2шт.

21

BN66604

HOSE

1/4" ID x 355", 100R1

2шт.

22

BN67132

HYDRAULIC HOSE

1/2" x 170, 100RI

1шт.

23

BN54174

HOSE

1/4" ID x 174", 100R1

2шт.

24

BN21422

TEE

7/16-20 JIC

1шт.

25

BN54177

HOSE

1/4" ID x 96", 100R1

3шт.

26

BN54175

HOSE

1/4" x 182", 100R1

2шт.

27

BN67677

HOSE

1/4" ID x 113"

2шт.

28

BN67676

HOSE

1/4" ID x 102"

2шт.

29

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

4шт.

30

BN68759

HYDRAULIC VALVE

double relief

2шт.

BN67270

VALVE BLOCK

relief

1шт.

Service part for BN68759

1шт.

BN314924

VALVE PRESSURE RELIE

2340

1шт.

Service part for BN68759

1шт.

BN314925

VALVE, PRESSURE RELI

EF 1440

1шт.

Service part for BN68759

1шт.

31

BN67002

BOOM RELIEF electrical

1шт.

33

BN21734

ADAPTER

straight, FT, 3/8 NPT x 3/4" OR

2шт.

34

BN53594

FITTING

ADAPTER, 90 deg., OR x 37 JIC

2шт.

35

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

2шт.

36

BN68658

PLUG

orifice, .038

2шт.

37

BN51665

FITTING

CPL, ML PI. 3/8

1шт.
