(102) - ENGINE, REMOTE FUEL FILTER PACKAGE

Запчасти Case IH SPX3150 (102) - ENGINE, REMOTE FUEL FILTER PACKAGE (10) - ENGINE

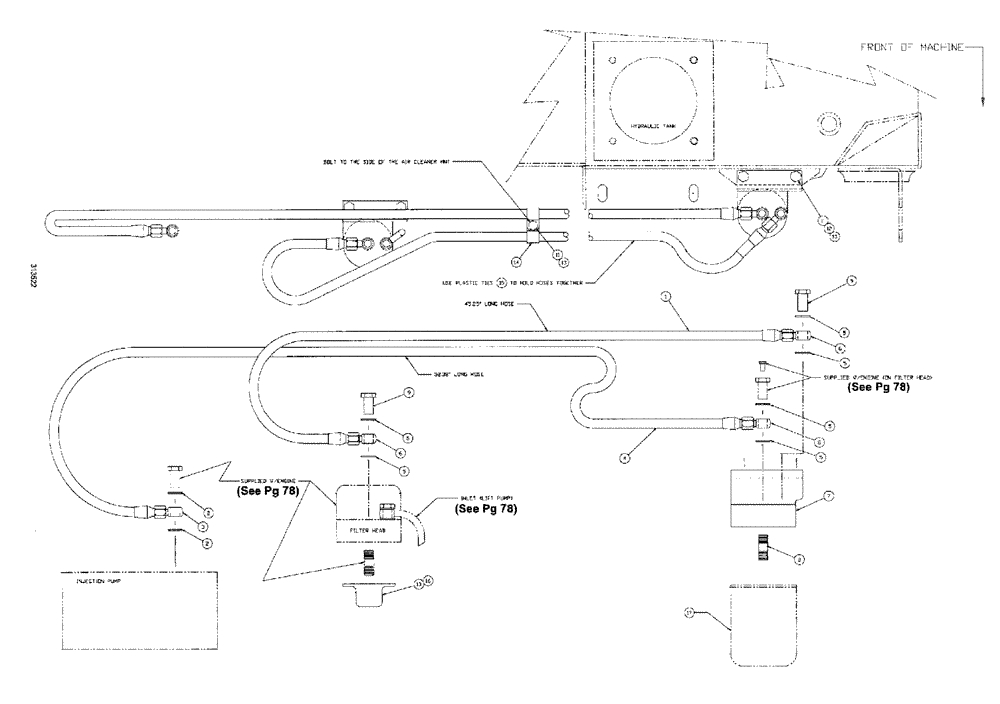

Схема запчастей Case IH SPX3150 - (102) - ENGINE, REMOTE FUEL FILTER PACKAGE (10) - ENGINE
13
5
5
5
6
2
9
4
5
7
6
9
5
13
8
11
14
16
17
12
3
11
6
2
15
5
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J283548

HOSE

flexible, 45.25"

1шт.

2

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER seal

2шт.

3

J281145

CONNECTOR, ELEC

CONNECTOR banjo

1шт.

4

J284195

HOSE

flexible, 52.37"

1шт.

5

J918191

PACKING RING

WASHER seal

6шт.

6

J283136

CONNECTOR, ELEC

CONNECTOR banjo

3шт.

7

J930969

CAP

FILTER HEAD

1шт.

8

J925954

ADAPTER,M16 x 1.5 x M16 x 1.5

FILTER, nipple

1шт.

9

J903035

BANJO BOLT

2шт.

10

J935487

COVER

Filter head

1шт.

11

1913318C

BOLT Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

13

BN2392390

WASHER

5/16", SS

3шт.

14

BN41859

CLAMP

9/16", Vinyl Covered

2шт.

15

BN51143

STRAP

tie, 11" x .171"

2шт.

16

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING cover, filter head

1шт.

17

J931062

FILTER

fuel

1шт.
