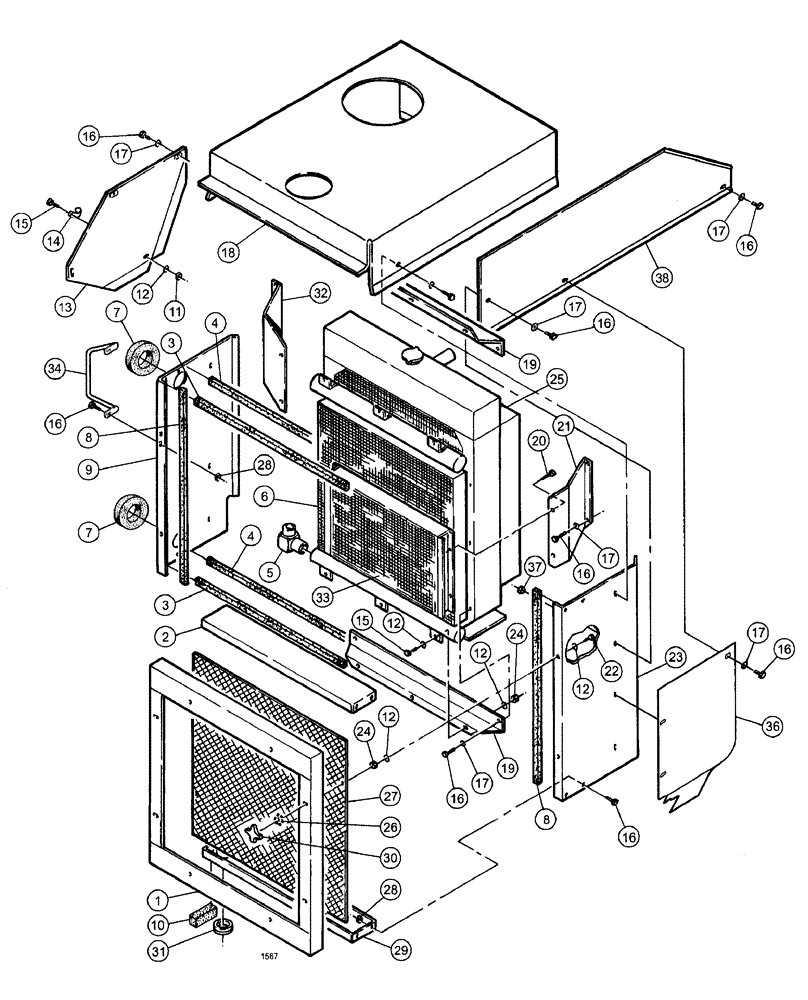

Запчасти Case IH SPX3150 (094) - ENGINE - MT. & SCREEN-OILCOOL ASSEMBLY (10) - ENGINE

1

BN67581

COVER ASSY

WT RAD INT

1шт.

2

BN67584

COVER

top

1шт.

3

BN68595

SEAL

foam, .75 x 1 x 29

2шт.

4

BN68597

SEALING STRIP,25.4mm W x 774.7mm L x 19.05mm Thk

foam, .75 x 1 x 30.5

2шт.

5

BN67881

ADAPTER

90º 1" NPT x #16 JIC

2шт.

6

BN29339

OIL COOLER

Hyd.

1шт.

7

BN304609

SEAL

foam

2шт.

8

BN68596

SEALING STRIP,25.4mm W x 850.9mm L x 19.05mm Thk

foam, .75 x 1 x 33.5

2шт.

9

BN315808

SHROUD

LH

1шт.

10

BN65150

INSULATOR

foam, .75 x 1.0 x 3.0

1шт.

11

BN50064

NUT

3/8"-16, Stainless Steel

1шт.

12

BN50146

WASHER,3/8", Stainless

13шт.

13

BN310685

SHIELD, alternator

1шт.

14

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

15

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

7шт.

16

BN50476

BOLT,5/16"-18 x 0.75", Stainless

24шт.

17

BN50142

WASHER,5/16", Stainless Steel

27шт.

18

BN313432

COVER ASSY

ENGINE

1шт.

19

BN315804

BRACKET, SUPPORTING

Mount, Cooler

2шт.

20

BN50767

WASHER

SCREW hexhead, 1/4" x 3/4 STP

4шт.

21

BN315795

MOUNTING PLATE

Condensor, RH

1шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

23

BN315807

SHROUD

RH

1шт.

24

BN50062

LOCK NUT,3/8"-16, Stainless Steel

10шт.

25

NSS

NOT SOLD SEPARAT

RADIATOR

1шт.

See Fig. 100

1шт.

26

493-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

27

BN67589

SCREEN

RADIATOR COVER mesh

1шт.

28

BN50056

LOCK NUT

5/16"-18, Whiz

4шт.

29

BN67588

COVER

bottom

1шт.

30

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

31

BN67586

GROMMET cut

1шт.

32

BN315797

MOUNTING PLATE

Condensor, LH

1шт.

33

BN67785

CONDENSER

Coil

1шт.

34

BN313105

HANDLE

radiator

1шт.

36

BN312980

DEFLECTOR

HOOD EXTENSION

1шт.

38

BN312960

DEFLECTOR

hood extension

1шт.
