Запчасти Case IH SPX3150 (092) - ENGINE, THROTTLE CABLE ASSEMBLY (10) - ENGINE

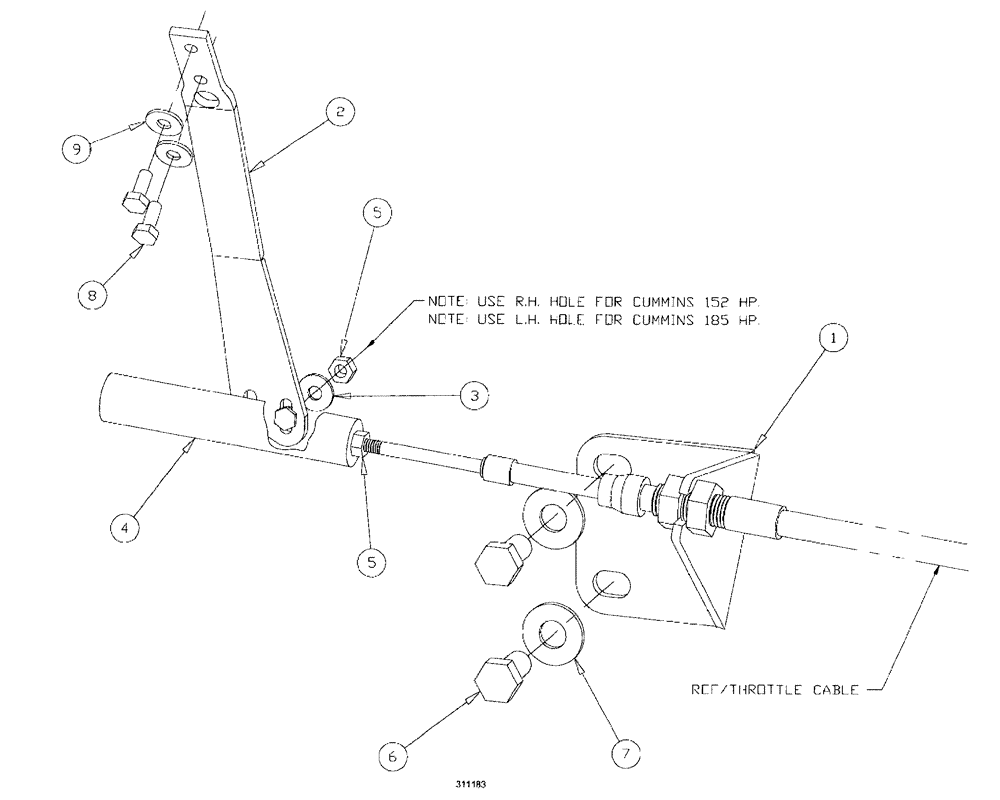

Схема запчастей Case IH SPX3150 - (092) - ENGINE, THROTTLE CABLE ASSEMBLY (10) - ENGINE
3
9
4
7
2
8
5
6
5
1

Артикул

Название

Примечание

Количество

1

BN323630

BRACKET

Throttle

1шт.

2

BN310390

LEVER

throttle cable

1шт.

3

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

1шт.

4

225619A1

BALL JOINT

throttle rod

1шт.

Model SPX3185

1шт.

4

343704A1

BALL JOINT

Complete

1шт.

Model SPX3150

1шт.

5

50055

NUT Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

6

43258

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

7

BN300500

WASHER,M12, 10.9

2шт.

8

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

9

BN300496

WASHER

M6, Flat, 10.9

2шт.

BN310488

THROTTLE

Cable Mounting Assembly, NSS, Incl 1 - 4

1шт.

Выбрано товаров: 13
