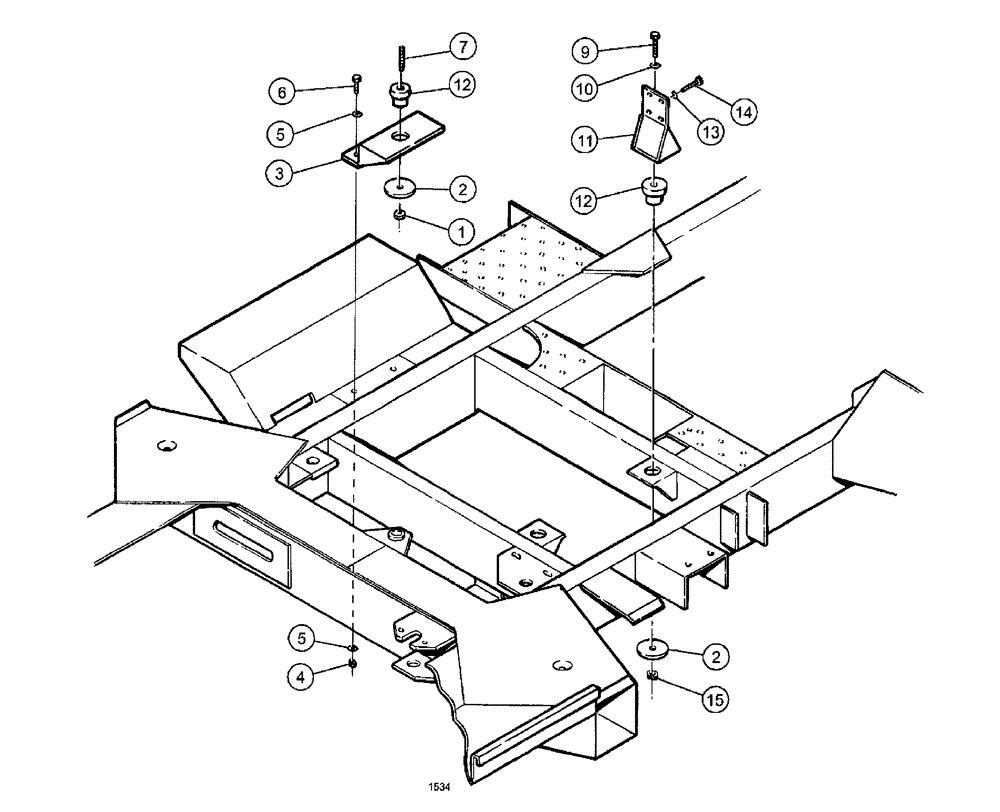

Запчасти Case IH SPX3150 (090) - ENGINE, ENGINE MOUNTING PACKAGE (10) - ENGINE

1

BN300410

BOLT

FLN, M16-2, 8.8

1шт.

2

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

3шт.

3

BN310420

MOUNTING PLATE

front engine

1шт.

4

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

2шт.

5

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

4шт.

6

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

2шт.

7

BN311165

STUD

M16 x 2 x 70

1шт.

9

BN50319

BOLT

hexhead, 5/8-11 x 3.5, 5, PL

2шт.

10

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

2шт.

11

BN310417

rear engine mount

2шт.

12

BN25639

ISOLATOR

Rubber Motor Mount

3шт.

13

BN300500

WASHER,M12, 10.9

8шт.

14

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

15

BN50797

NUT

5/8-11, HX, CTR

2шт.
