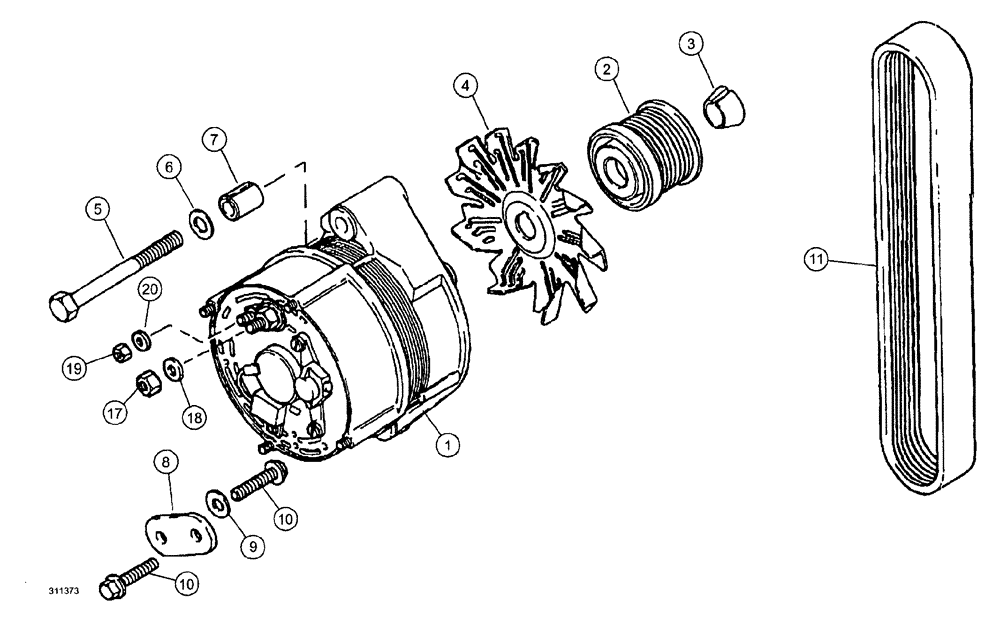

Запчасти Case IH SPX3150 (087) - ENGINE, ALTERNATOR PACKAGE (10) - ENGINE

1

327121A1

ALTERNATOR

120 amp

1шт.

87020406R

REMAN-ALTERNATOR

SPX3150, SPX3185 both (5/99-8/02), Reman For New P/N 327121A1

1шт.

87020406C

CORE-ALTERNATOR

Return Number

1шт.

2

J908560

PULLEY

alternator

1шт.

3

J908563

RETAINER

1шт.

4

327397A1

FAN

alternator

1шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

5

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

J902469

SPACER

1шт.

8

J903089

SUPPORT

BRACE

1шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

M8

1шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

11

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

Model SPX3150

1шт.

11

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Poly, Model SPX3185

1шт.

17

825-1408

NUT,M8, Cl 8

1шт.

19

825-1405

NUT,M5, Cl 8

1шт.

20

86509828

LOCK WASHER,M5

1шт.

21

BN322878

REPAIR KIT

Alternator Diode Pack, Not Shown

1шт.
