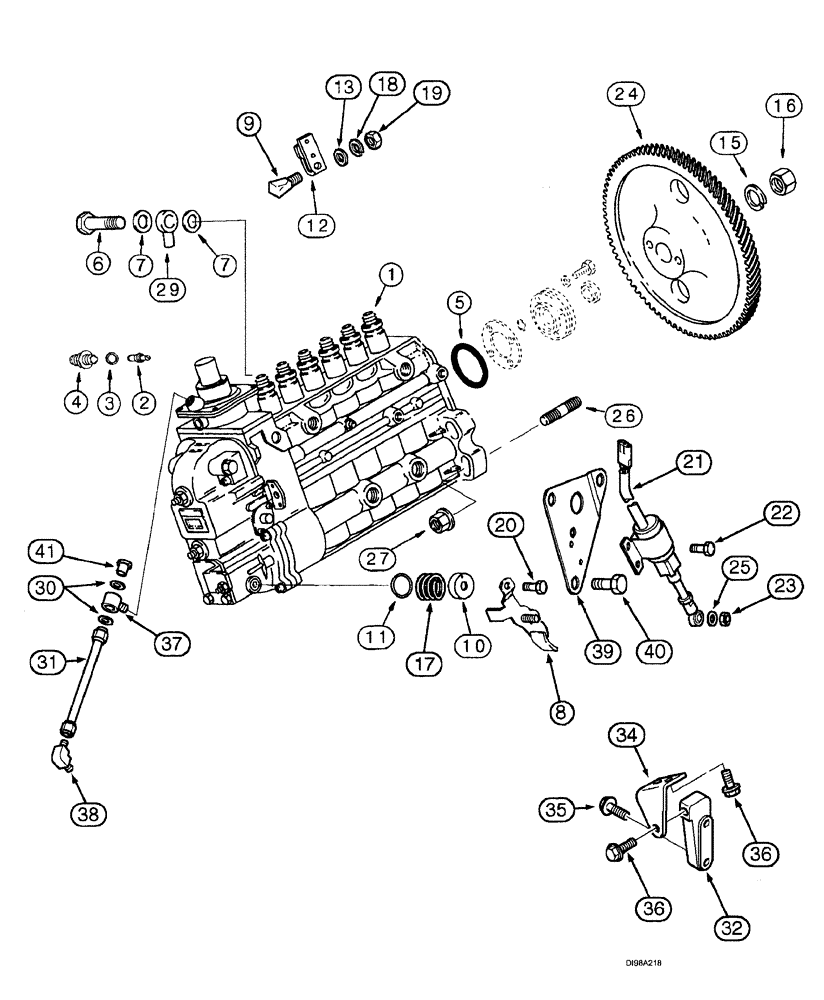

Запчасти Case IH SPX3150 (082) - ENGINE, FUEL INJECTION PUMP, SPX3185 (10) - ENGINE

1

J933621

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., Includes: 2 - 19

1шт.

2

A77720

PIN

Timing

1шт.

3

J928981

LOCK WASHER

RING, packing

1шт.

4

J912888

PLUG

1шт.

5

J930993

O-RING

1шт.

6

J932096

VALVE

BOLT, banjo

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

2шт.

8

J802998

PACKAGE,SERVICE

LEVER ASSY.

1шт.

9

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

10

691292C1

RETAINER

Spring

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

seal

1шт.

12

1808728C1

LEVER

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

A77775

LOCK WASHER

Lock

1шт.

16

A41852

LOCK NUT

Hex, M14 x 1.5

1шт.

17

J912890

SPRING

1шт.

18

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

19

829-1306

NUT,M6, Cl 10

1шт.

20

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

21

J932529

SOLENOID

ASSY.

1шт.

22

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

23

832-41306

NUT,M6 x 1, Cl 10

1шт.

24

J931450

PINION

GEAR

1шт.

25

J934022

WASHER

1шт.

26

J915036

STUD

55 mm, 2-5/32 in.

4шт.

27

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

29

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

30

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

2шт.

31

J928529

TUBE

1шт.

32

J863312

BRACE

1шт.

34

J863311

BRACE

1шт.

35

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

36

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

3шт.

37

J919644

FITTING

CONNECTOR

1шт.

38

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

39

J930589

SUPPORT

BRACKET

1шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

3шт.

41

J903035

BANJO BOLT

BOLT, M12 x 24

1шт.
