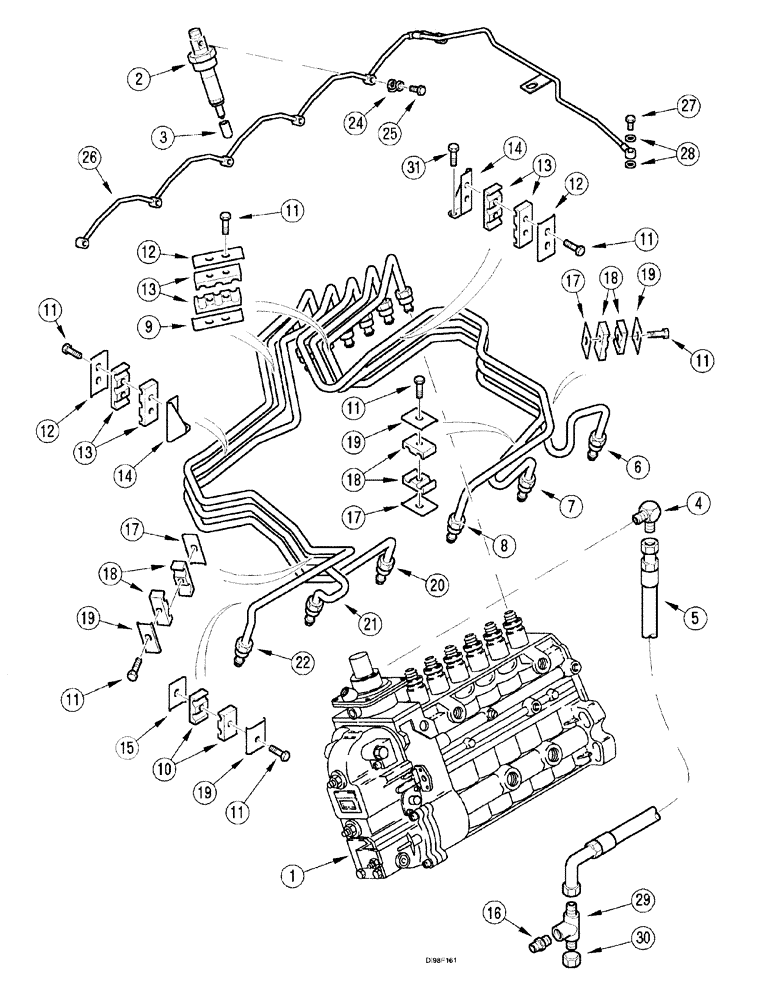

Запчасти Case IH SPX3150 (074) - ENGINE, FUEL INJECTION SYSTEM, SPX3150 (10) - ENGINE

1

PUMP ASSY., see Figure 080

1шт.

2

NOZZLE ASSY., see Figure 084

6шт.

3

J906659

SEAL

M7

6шт.

4

A77512

ELBOW

Male, 90º

1шт.

5

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

6

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

cylinder 1

1шт.

7

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

cylinder 2

1шт.

8

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

cylinder 3

1шт.

9

J917716

BRACE

2шт.

10

J919359

CLAMP

2шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

12

J904519

SUPPORT

4шт.

13

J917747

CLAMP

ISOLATOR

8шт.

14

J282942

BRACKET

2шт.

15

J940840

BRACE

1шт.

16

J941472

FITTING

CONNECTOR

1шт.

17

J917717

BRACE

3шт.

18

J917746

CLAMP

ISOLATOR

6шт.

19

CURJ904711

CLAMP

4шт.

20

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

cylinder 4

1шт.

21

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

cylinder 5

1шт.

22

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

cylinder 6

1шт.

24

J903380

SEAL

Banjo connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

26

J933295

MANIFOLD

1шт.

27

J924726

BANJO BOLT

BOLT, banjo

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

29

J933291

TEE

1шт.

30

86511869

CAP,7/16" - 20 JIC

1шт.

31

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
