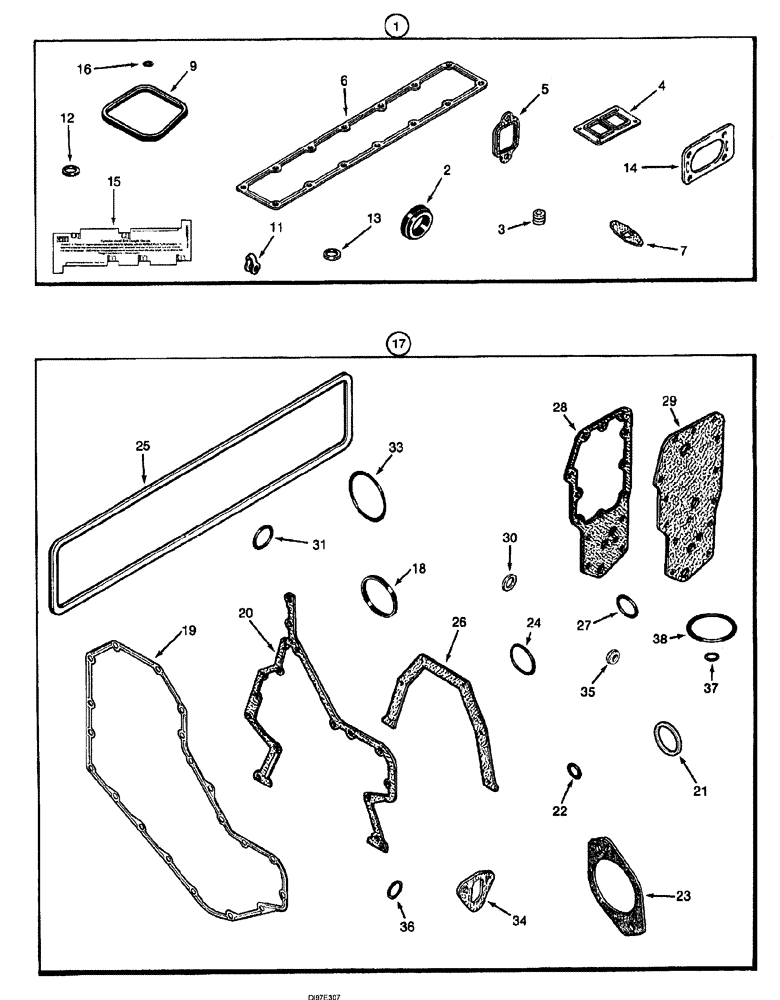

Запчасти Case IH SPX3150 (070) - ENGINE, GASKET KITS, VALVE GRIND AND CYLINDER BLOCK (10) - ENGINE

1

A77871

SEAL PACKAGE

GASKETS valve grind

1шт.

Consists of Refs. 2 - 16

1шт.

2

J923331

GASKET

SEAL, thermostat, valve grind

1шт.

3

J901097

SEAL

intake, valve grind

6шт.

3

J921640

SEAL

valve stem

6шт.

4

J919369

GASKET,0.5mm Thk

SEAL, valve grind

1шт.

5

J905443

MANIFOLD GASKET

SEAL, valve grind

6шт.

6

J931347

GASKET

SEAL, valve grind

1шт.

7

J931350

GASKET

SEAL, valve grind

1шт.

9

J930906

GASKET

SEAL, valve grind

6шт.

11

J903380

SEAL

Banjo connector

6шт.

12

J906659

SEAL

M7, valve grind

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, M7, valve grind

6шт.

14

J914856

GASKET,1.02mm Thk

SEAL, 7 mm, valve grind

1шт.

15

J823921

GAUGE

7 mmvalve grind

1шт.

16

J928406

ISOLATOR

valve grind

6шт.

17

A77868

SEAL PACKAGE

Gaskets, Cylinder Block

1шт.

Consists of Refs. 18 - 38

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cylinder block

1шт.

19

J918673

GASKET,1.02mm Thk

SEAL, cylinder block

1шт.

20

J931351

GASKET

SEAL, cylinder block

1шт.

21

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Cylinder block

1шт.

22

J913994

O-RING

cylinder block

1шт.

23

J929751

GASKET

SEAL, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

25

J928832

GASKET

SEAL, cylinder block

1шт.

26

J928493

GASKET

SEAL, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, cylinder block

1шт.

28

J942914

GASKET

SEAL, cylinder block

1шт.

29

J942915

GASKET

SEAL, model SPX3150, cylinder block

1шт.

29

J929792

GASKET,1.2mm Thk

SEAL, model SPX3185, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm ID, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING 158 mm ID, cylinder block

1шт.

34

J931348

GASKET

SEAL, cylinder block

1шт.

35

J928759

SEALING WASHER

cylinder block

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

37

J929457

O-RING

23/32 ID x 7/64, cylinder block

1шт.

38

J930993

O-RING

cylinder block

1шт.
