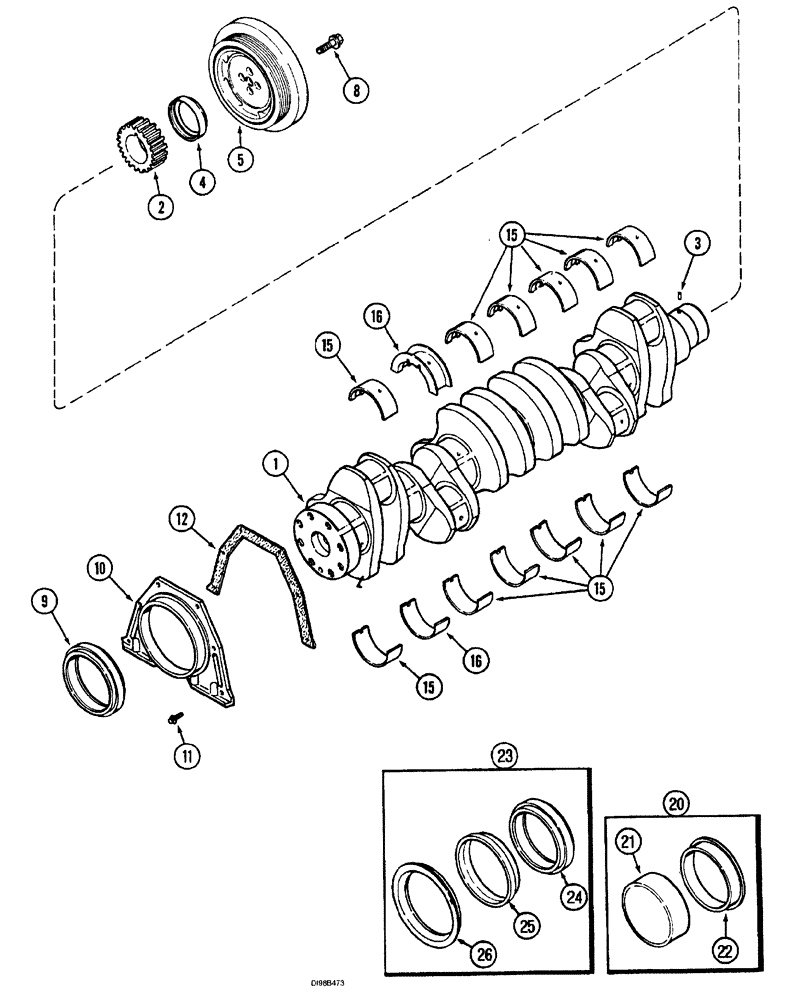

Запчасти Case IH SPX3150 (066) - ENGINE, CRANKSHAFT, SPX3185 (10) - ENGINE

1

J908032

CRANKSHAFT

ASSY.

1шт.

Includes Refs. 2, 3 & 4

1шт.

2

J929027

PINION

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

PI

1шт.

4

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

5

J914454

DAMPER

PULLEY

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

SCREW, M12 x 36

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Order Ref. 23

1шт.

10

J921043

REAR COVER

RETAINER

1шт.

11

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

12

J928493

GASKET

SEAL

1шт.

15

A77405

CRANKSHAFT BEARING

Main, Set of 2, Standard

6шт.

15

A77472

BEARING SET

Main, Upper and Lower Set, 0.25 mm Undersize

6шт.

15

A77474

BEARING SET

Main, Upper and Lower Set, 0.5 mm Undersize

6шт.

15

A77476

BEARING SET

Main, Upper and Lower Set, 0.75 mm Undersize

6шт.

15

A77478

BEARING SET

Main, Upper and Lower Set, 1.0 mm Undersize

6шт.

16

A77896

BEARING SET

Main, Set of Two, Standard

1шт.

16

A77473

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.25 mm Undersize

1шт.

16

A77475

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.5 mm Undersize

1шт.

16

A77477

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.75 mm Undersize

1шт.

16

A77479

THRUST BEARING

Main, Upper and Lower Set, 1.0 mm Undersize

1шт.

16

A77840

THRUST BEARING

Main, Upper and Lower Set, 1.00 mm Undersize, 1.00 mm Oversize Thrust

1шт.

16

A77841

THRUST BEARING

Main, Upper and Lower Set, 0.50 mm Undersize, 0.50 mm Oversize Thrust

1шт.

20

A77810

SERVICE KIT

Wear Sleeve, Crankshaft Rear

1шт.

Consists of Refs. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

87339552

SEAL KIT

Oil Seal, Crankshaft Rear

1шт.

Consists of Refs. 24, 25 & 26; Tool No Longer Included in Kit, Available from OTC

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL

1шт.
