Запчасти Case IH SPX3150 (056) - ENGINE, CAMSHAFT (10) - ENGINE

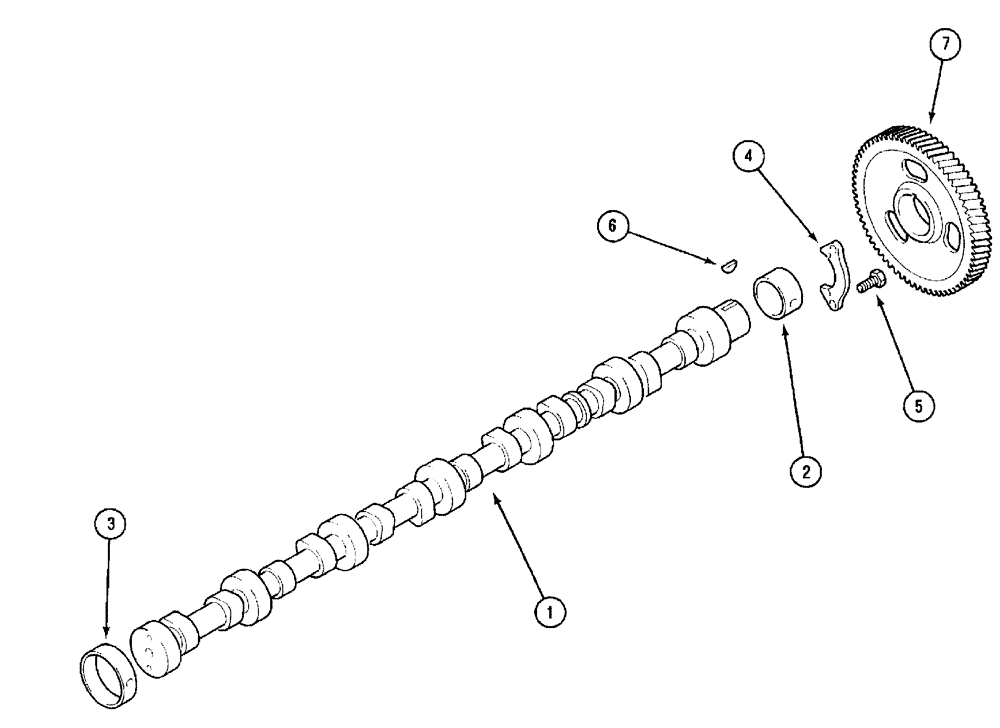

Схема запчастей Case IH SPX3150 - (056) - ENGINE, CAMSHAFT (10) - ENGINE
2
7
6
4
1
3
5

Артикул

Название

Примечание

Количество

1

J929886

CAMSHAFT

1шт.

1

J929886R

REMAN-CAMSHAFT

SPX3150, SPX3185, Both PATRIOT SPRAYER (5/99-8/02)

1шт.

1

J929886C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

front, standard, 57.30 mm OD

1шт.

2

J904369

BUSHING

front, oversize, 58 mm

1шт.

Model SPX3150

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

front, oversize, 58 mm

1шт.

Model SPX3185

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

6шт.

4

J927155

SUPPORT

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

Model SPX3150

1шт.

6

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

Model SPX3185

1шт.

7

J929030

PINION

GEAR

1шт.

Выбрано товаров: 16
