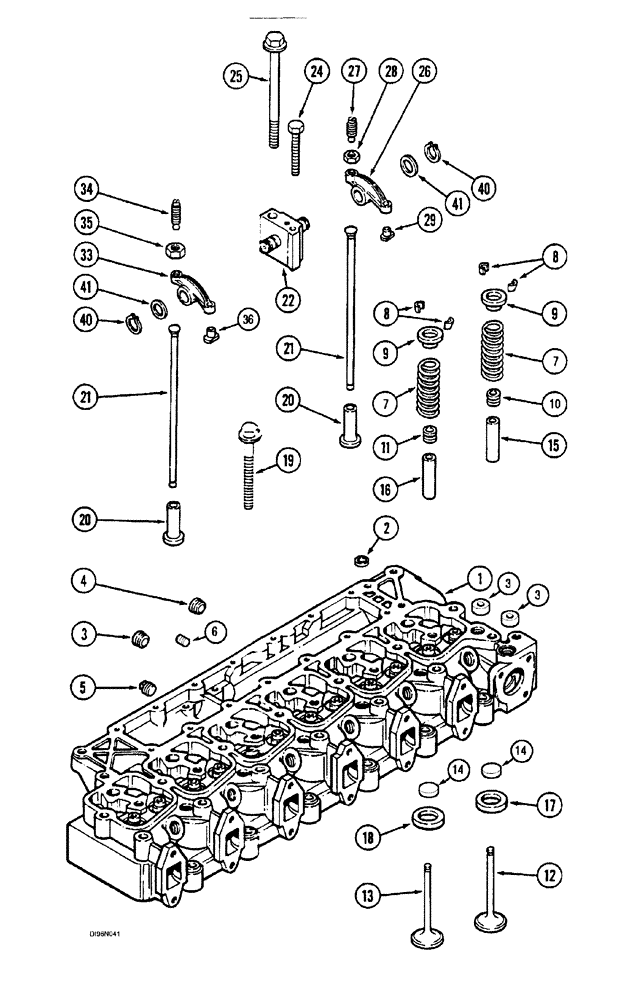

Запчасти Case IH SPX3150 (054) - ENGINE, VALVE MECHANISM (10) - ENGINE

J927301

HEAD (CYLINDER)

with valves, consists of: 1 thru 13

1шт.

JR927301

REMAN-CYLINDER HEAD

1шт.

JC927301

CORE-CYLINDER HEAD

Return Number

1шт.

1

J925389

HEAD (CYLINDER)

ASSY., without valves, Includes:: 2

1шт.

2

A77783

PLUG

Expansion, 21 mm od

5шт.

3

86625118

DRAIN PLUG,1/2" - 14 NPT

5шт.

4

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

2шт.

5

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

6

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

7

J926700

VALVE SPRING

12шт.

8

J900250

SCREW

INSERT

24шт.

9

J900299

RETAINER

retainer

12шт.

10

J921640

SEAL

valve stem

6шт.

11

J901097

SEAL

exhaust

6шт.

12

J920867

VALVE

intake

6шт.

13

J920868

VALVE

exhaust

6шт.

14

J910412

WEAR PAD

12шт.

15

J904408

GUIDE

intake, 14 mm OD

6шт.

16

J904409

GUIDE

exhaust, 14 mm OD

6шт.

16

J906206

GUIDE

11 mm OD

12шт.

17

J906854

SEAT, VALVE

6шт.

18

J904105

SEAT, VALVE

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

14шт.

20

J931623

TAPPET

12шт.

21

J923262

PUSH ROD

12шт.

22

J922488

SUPPORT

6шт.

24

J901221

BOLT

M8 x 75

6шт.

25

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

26

J910811

ROCKER

ARM ASSY,, intake, Includes: 27 - 29

6шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

86509310

NUT,3/8" - 24, Gr 5

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT

1шт.

33

J910810

ROCKER

ARM ASSY, exhaust, Includes: 34 - 36

6шт.

34

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

35

86509310

NUT,3/8" - 24, Gr 5

1шт.

36

NSS

NOT SOLD SEPARAT

INSERT

1шт.

40

J900242

SNAP RING

12шт.

41

J900245

WASHER

12шт.
