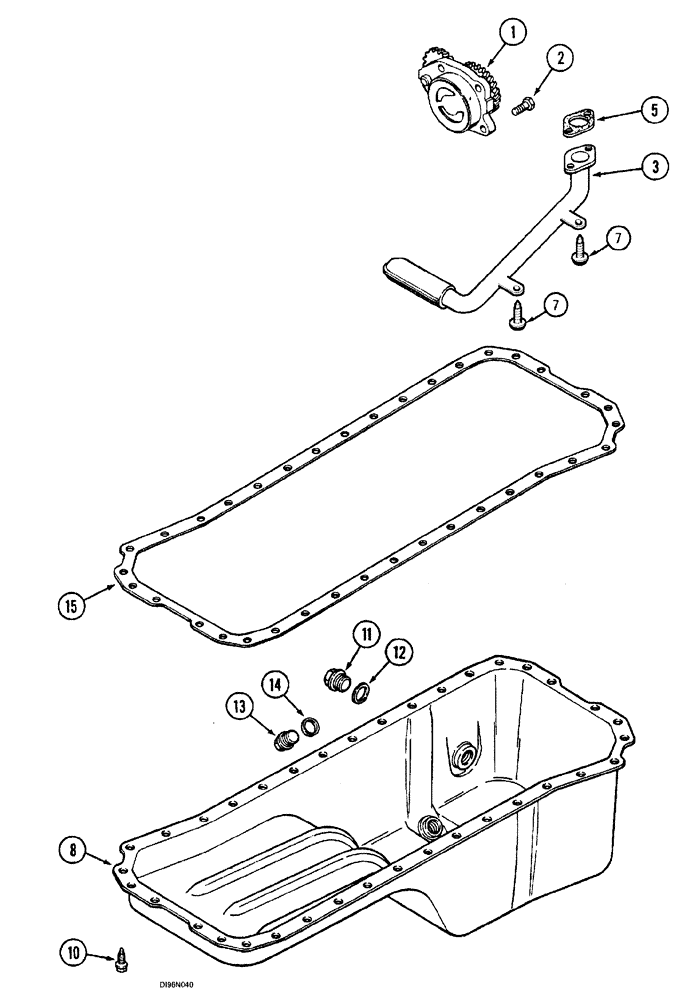

Запчасти Case IH SPX3150 (050) - ENGINE, OIL PUMP AND OIL PAN (10) - ENGINE

1

J941742

PUMP, ENGINE OIL

model SPX3150

1шт.

1

J930337

PUMP, ENGINE OIL

model SPX3185

1шт.

2

J900677

BOLT,Hex

SCREW M8 x 30

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE

1шт.

A77979

GASKET KIT

Oil Pan

1шт.

Includes Refs. 5, 14 and 15

1шт.

5

J914383

GASKET

SEAL, model SPX3150

1шт.

5

J931349

GASKET

SEAL, model SPX3185

1шт.

7

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

8

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

36шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

13

J924147

PLUG,M18 x 1.5

magnetic, M18

1шт.

14

J920773

SEALING WASHER

WASHER

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, order: A77676

1шт.
