(044) - ENGINE, TURBOCHARGER, SPX3150

Запчасти Case IH SPX3150 (044) - ENGINE, TURBOCHARGER, SPX3150 (10) - ENGINE

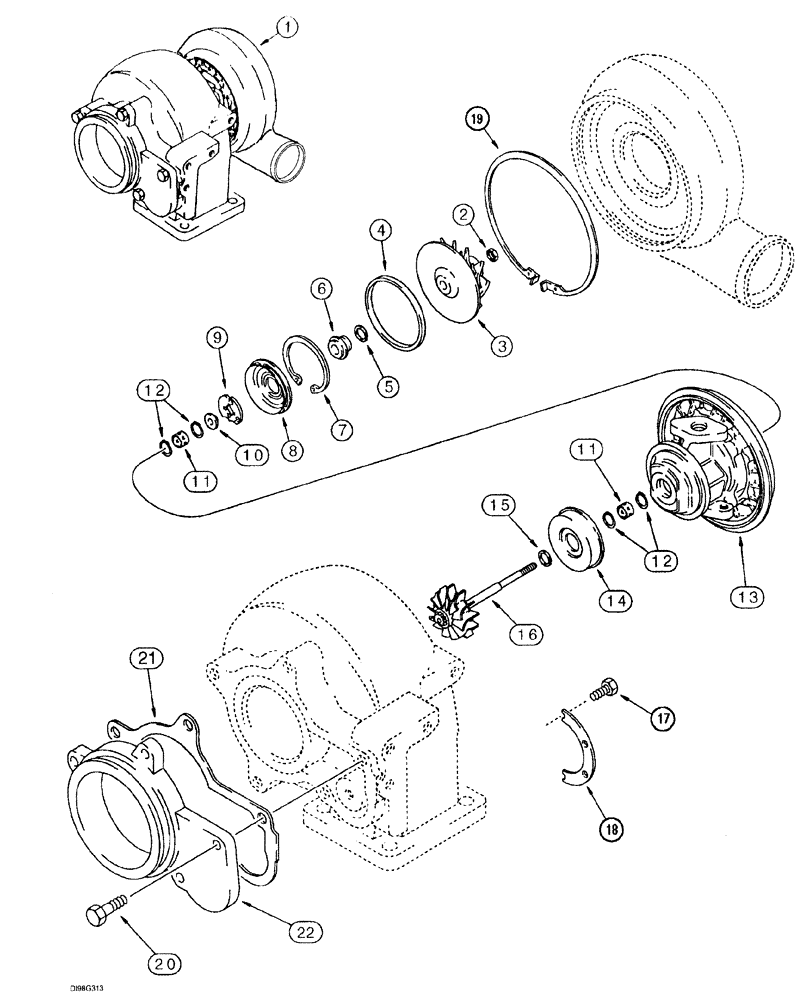

Схема запчастей Case IH SPX3150 - (044) - ENGINE, TURBOCHARGER, SPX3150 (10) - ENGINE
20
17
3
22
2
1
9
14
18
10
6
12
16
19
11
8
11
7
13
21
15
4
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J802770

TURBOCHARGER

Includes: 2 thru 21

1шт.

1

JR802770

REMAN-TURBOCHARGER

SPX3150

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

J575217

HOUSING

consists of: 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING, SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING roller

2шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

RING, SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSY.

1шт.

17

J759917

SET SCREW

4шт.

18

J501188

PLATE

2шт.

19

J533163

SNAP RING

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J535243

GASKET,0.25mm Thk

SEAL

1шт.

22

J533030

ADAPTER

1шт.

J575169

REPAIR KIT

KIT, turbocharger, consists of: 2, 4, 5, 7 - 9, 11, 12, 15 and 17

1шт.
