Запчасти Case IH SPX3150 (016) - CAB EXTERIOR, DOOR, MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

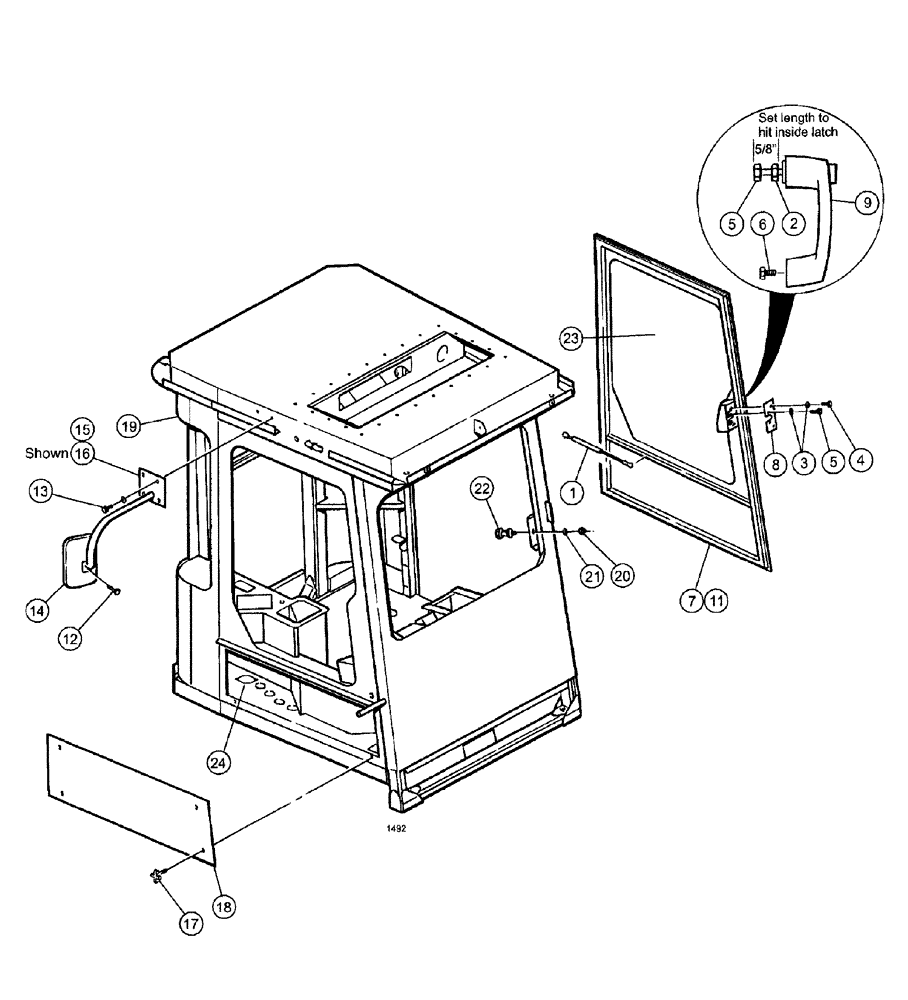

Схема запчастей Case IH SPX3150 - (016) - CAB EXTERIOR, DOOR, MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
5
14
24
9
21
15
4
8
20
16
2
1
3
22
23
19
7
18
12
5
13
11
6

Артикул

Название

Примечание

Количество

BN67932

DOOR ASSY.

Entry, LH

1шт.

Includes Refs. 1 - 11

1шт.

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service part for BN29434

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service part for BN29434

1шт.

2

BN50053

NUT

Hex, 1/4"-20, G5

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

5

50214

BOLT Hex, 1/4"-20 x 1", G5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

Associate part for BN66103

1шт.

9

BN66106

HANDLE

door, outside

1шт.

BN303475

DOOR LOCK KEY

set of 2

1шт.

Associate part for BN66106

1шт.

11

BN67957

DOOR SEAL

clip on, 190"

1шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

14

BN66128

MIRROR

Stud Mount - 7.5 x 10.5

2шт.

185773A1

MIRROR

2шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

1530998C2

SUPPORT

holder

2шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Associate part for BN66128

1шт.

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Associate part for BN66128

1шт.

BN314748

MOUNTING PARTS

mirror, RH

1шт.

Associate part for BN66128

1шт.

BN314798

MOUNTING PARTS

mirror, LH

1шт.

Associate part for BN66128

1шт.

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

6шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

15

BN67557

MIRROR ARM

LH

1шт.

16

BN67558

MIRROR ARM

RH

1шт.

Shown

1шт.

17

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

18

BN303165

PANEL, SIDE

access

1шт.

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

2шт.

Associate part for BN303165

1шт.

84167815

RUBBER SEAL

Electrical Bay, Bulk Length 9'

1шт.

Associate part for BN303165

1шт.

BN303278

WASHER

3/8 NP SS

4шт.

Associate part for BN303165

1шт.

19

BN65970

CAB

1шт.

20

BN50114

NUT

7/16"-14 Hex, G5

1шт.

21

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

22

BN66109

CATCH

STRIKER door

1шт.

BN300873

BULB

Halogen, H3 12 volt

6шт.

Service part for BN66109

1шт.

24

BN69742

ELEC. TERMINAL PIN,Male

Bulkhead , .22 Pin Male

1шт.

BN69743

LOCK

bulkhead connector

2шт.

Associate part for BN69742

1шт.

BN16108

PLUG

Weatherpak Connector

22шт.

BN306057

CONTACT HOUSING

terminal

1шт.

Associate part for BN69742

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Associate part for BN69742

1шт.

Выбрано товаров: 63
