(010) - CAB INTERIOR, UPHOLSTERY

Запчасти Case IH SPX3150 (010) - CAB INTERIOR, UPHOLSTERY (90) - PLATFORM, CAB, BODYWORK AND DECALS

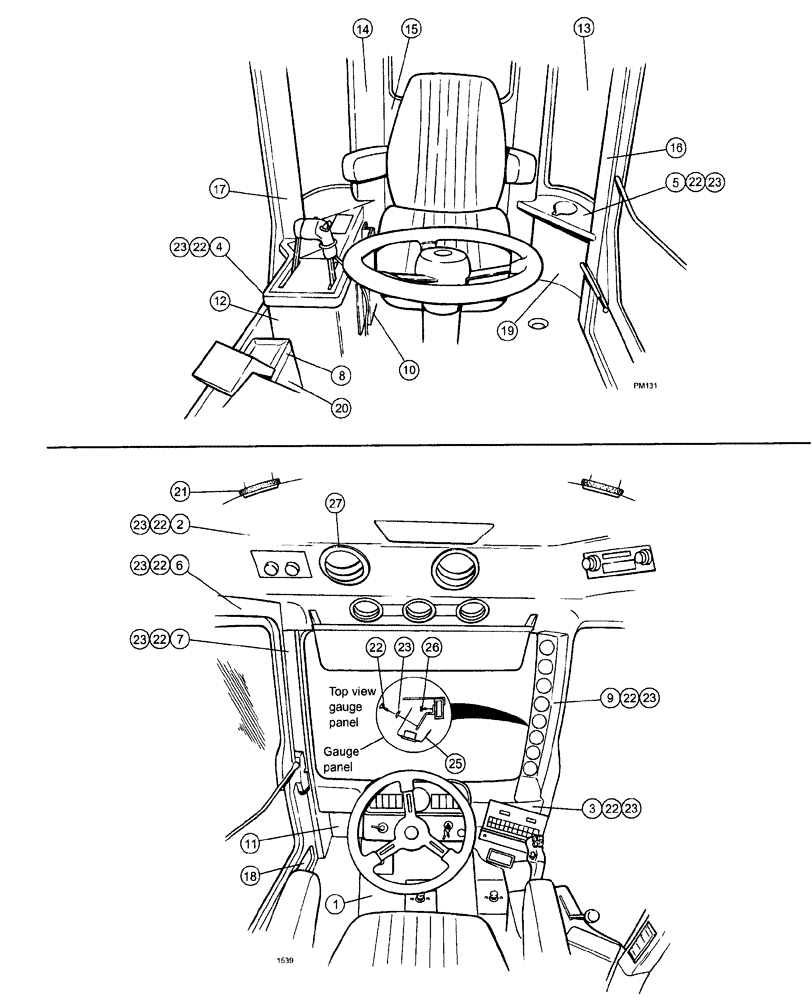

Схема запчастей Case IH SPX3150 - (010) - CAB INTERIOR, UPHOLSTERY (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
2
25
17
22
23
22
23
5
14
16
26
22
9
8
23
15
23
23
18
13
23
6
23
12
19
22
23
10
11
21
3
22
27
20
4
1
7
22
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN68886

FLOOR MAT

molded

1шт.

2

BN311770

ROOF LINING

head, molded

1шт.

3

BN68888

CONSOLE

Molded Dash

1шт.

4

BN311765

COVER

Molded control, 7 bank

1шт.

5

BN68890

COVER

Molded Rear Corner

1шт.

6

BN68891

FRAME

Molded Door

1шт.

7

BN68892

COVER

Molded Front Left

1шт.

8

BN68893

HOLDER

pencil

1шт.

9

BN68894

CONSOLE

Front Gage

1шт.

10

BN68895

HOLDER

book

1шт.

11

BN68896

FOAM

cab front fire wall

1шт.

12

BN68897

FOAM

Controlside Lower PL

1шт.

13

BN68898

FOAM

LH rear post cover

1шт.

14

BN68899

FOAM

RH rear post cover

1шт.

15

BN68900

FOAM

rear middle panel

1шт.

16

BN68901

FOAM

left side post cover

1шт.

17

BN68902

FOAM

post cover, right side

1шт.

18

BN68903

FOAM

door panel

1шт.

19

BN68904

FOAM

lower rear LH

1шт.

20

BN68905

FOAM

lower front RH

1шт.

21

BN304445

GASKET

foam, 1", behind louver

2шт.

22

BN69601

SCREW,#10 x 1"

#10 x 1 Flat Head CTSK

41шт.

23

BN69602

WASHER

#10 CNTRSK

41шт.

25

BN69850

MOUNTING PARTS

gage column

2шт.

26

BN50944

SCREW,Sl Pan Hd, #10 x 1/2"

#10 x .5, PH, SL

2шт.

27

BN68906

GASKET,12.7mm Thk

1/2" foam, 3", 4" louver (Behind Louver)

2шт.
