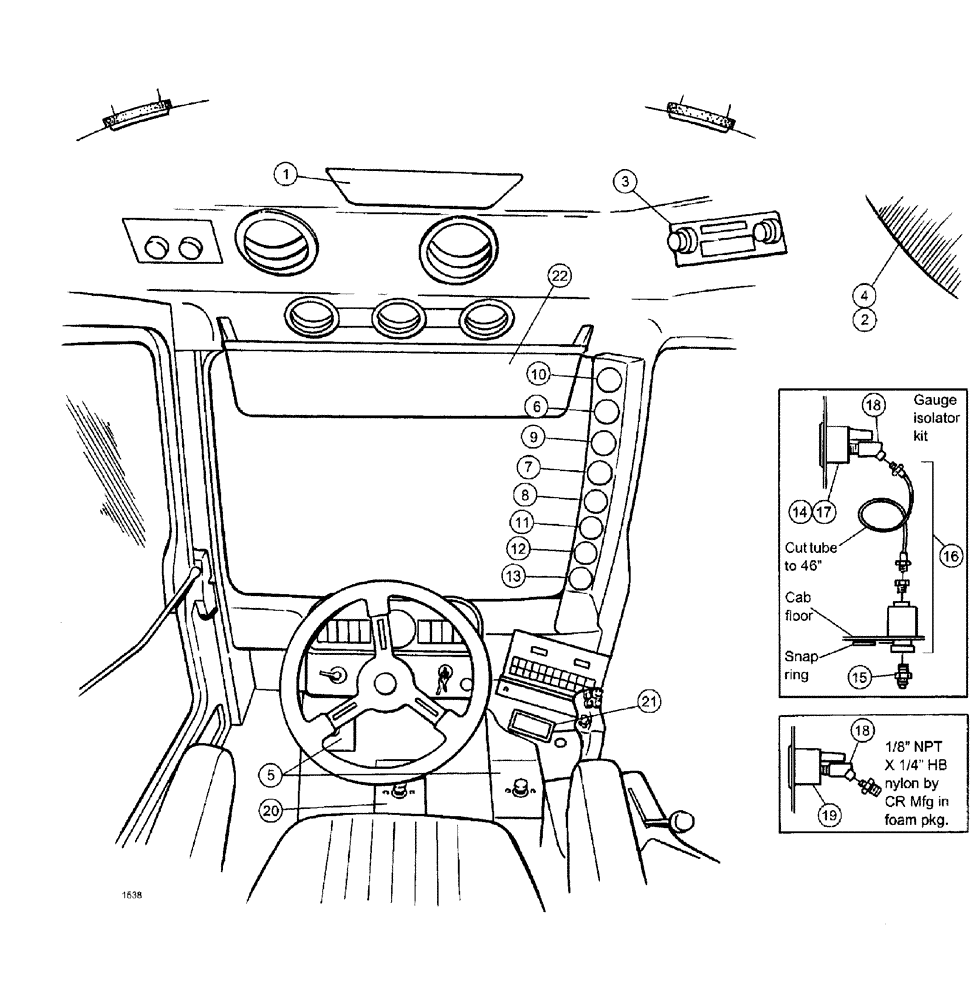

Запчасти Case IH SPX3150 (006) - CAB INTERIOR, GAUGES, ACCESSORIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

BN300876

BULB

Dome, 12 volt

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN57219

RADIO

am/fm/cassette, 12 V

1шт.

BN57222

ANTENNA

Radio

1шт.

Associate part of BN57219

1шт.

BN311133

BRACKET

Antenna, Radio

1шт.

Associate part of BN57219

1шт.

BN50051

NUT,1/4"-20, USR

1шт.

Associate part of BN57219

1шт.

BN50205

BOLT

1/4"-20 x .625 TH, SS

5шт.

Associate part of BN57219

1шт.

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

2шт.

Associate part of BN57219

1шт.

4

BN57220

SPEAKER

JVC, set of 2

1шт.

5

BN29522

SWITCH

LH Side, Dimmer, Floor Mount, RH Side Boom Section Valve

2шт.

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associate part of BN29522

1шт.

BN50051

NUT,1/4"-20, USR

2шт.

Associate part of BN29522

1шт.

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Associate part of BN29522

1шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associate part of BN29522

1шт.

BN50205

BOLT

1/4"-20 x .625 TH, SS

4шт.

Associate part of BN29522

1шт.

6

BN67301

FUEL GAUGE

level 12V, N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service part for BN67301

1шт.

7

BN67302

ELECTRICAL GAUGE

temp. 280 deg.,12 V, N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service part for BN67302

1шт.

8

BN67303

ELECTRICAL GAUGE

oil pressure, 100 psi

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service part for BN67303

1шт.

9

BN67304

ELECTRICAL GAUGE

VOLT. 12 V, DC/10-16

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service part for BN67304

1шт.

10

326944A1

HOURMETER

LCD, 12V

1шт.

11

BN68268

GAUGE

Boom pressure

1шт.

Includes Refs. 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Sparge pressure

1шт.

Includes Refs. 15, 16, 17 & 18

1шт.

13

BN68270

ELECTRICAL GAUGE

ASSY. foam pressure

1шт.

Includes Refs. 18 & 19

1шт.

BN309417

FITTING

FT, HB, 1/8 MPT x 1/4 HS, NYL.

1шт.

Part of assembly for BN68270

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Bulb, P.N. 301819 1.06" long, must be used in pressure guages for ref, nbrs, 14, 17 and 19 because of internal interferance with a longer bulb.

1шт.

Service part for BN67308

1шт.

15

BN441001

ADAPTER

pipe-37 Flare, 06-04

2шт.

16

BN67300

ISOLATOR

KIT GAUGE

2шт.

17

BN304843

GAUGE

pressure, sparge

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Bulb, P.N. 301819 1.06" long, must be used in pressure guages for ref, nbrs, 14, 17 and 19 because of internal interferance with a longer bulb.

1шт.

Service part for BN304843

1шт.

18

BN68256

ELBOW

45º 1/8 NPT - Female

3шт.

19

BN67307

ELECTRICAL GAUGE

foam pressure, 0 - 80

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Bulb, P.N. 301819 1.06" long, must be used in pressure guages for ref, nbrs, 14, 17 and 19 because of internal interferance with a longer bulb.

1шт.

Service part for BN67307

1шт.

20

BN68440

SWITCH

Load Share

1шт.

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associate part for BN68440

1шт.

BN50051

NUT,1/4"-20, USR

2шт.

Associate part for BN68440

1шт.

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Associate part for BN68440

1шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associate part for BN68440

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

BN314732

BRACKET

Visor, LH

1шт.

Associate part for BN67055

1шт.

BN314731

BRACKET

Visor, RH

1шт.

Associate part for BN67055

1шт.

BN304238

MOUNTING PARTS

bracket, rear

1шт.

Associate part for BN67055

1шт.

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

Associate part for BN67055

1шт.

BN312062

MOUNTING PARTS

bracket, bent, LR

1шт.

Associate part for BN67055

1шт.
